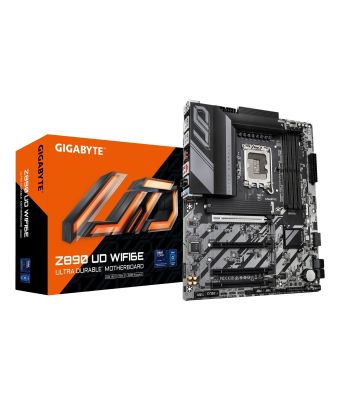

GIGABYTE Z890 UD WIFI6E Motherboard - Supports Intel Core Ultra (Series 2) CPUs
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Total number of SATA connectors
4
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
mSATA ports quantity
0
TPM connector
Yes
Number of SATA connectors
0
Number of SATA III connectors
4
Number of SATA II connectors
0
EPS power connector (8-pin)
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
Supported processor sockets
LGA 1851
PC health monitoring
Fan, Temperature, Voltage
On-board graphics card
No
Motherboard form factor
ATX
Component for
PC
Total number of SATA connectors
4
Maximum internal memory supported by processor
256 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
7
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1851
PC health monitoring
Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Maximum internal memory supported by processor
256 GB
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Processor socket
LGA 1851 (Socket V1)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Maximum internal memory
256 GB
Supported memory clock speed (max)
8800 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
7
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
4
RAID support
Yes
Graphics
On-board graphics card
No
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
0
Thunderbolt ports quantity
2
S/PDIF out port
Yes
Microphone in
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Features
Windows operating systems supported
Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
Supported processor sockets
LGA 1851
PC health monitoring
Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Product colour
Black
Expansion slots
Number of M.2 (M) slots
3
PCI Express x16 (Gen 4.x) slots
3
PCI Express x16 (Gen 5.x) slots
1
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
DirectX version
12.0
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.02 kg
Software
Windows operating systems supported
Windows 11 x64
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.02 kg
Weight
1.78 kg
Width
305 mm
Depth
244 mm
Packaging content
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included
Yes
Other features
Height
35 mm
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.02 kg
mSATA ports quantity
0
Weight
1.78 kg
GIGABYTE Z890 UD WIFI6E Motherboard - Supports Intel Core Ultra (Series 2) CPUs
