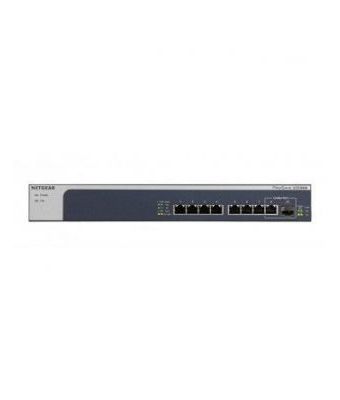

Netgear XS508M-100EUS Unmanaged 10G Ethernet

Power connector

DC-in jack

Power consumption (max)

39 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (typical)

21.31 W

Input current

1.5 A

Product colour

Grey- Silver

Mean time between failures (MTBF)

1145157 h

Rack mounting

Yes

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Basic switching RJ-45 Ethernet ports quantity

7

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Installed SFP+ modules quantity

1

Console port

RJ-45

Power connector

DC-in jack

Networking standards

IEEE 802.1p-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ae-IEEE 802.3an-IEEE 802.3aq-IEEE 802.3az-IEEE 802.3bz-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z

10G support

Yes

Jumbo frames

9000

MAC address table

2000 entries

Switching capacity

160 Gbit/s

Jumbo frames support

Yes

Safety

CE: CB 60950-1- LVD 60950-1- AUS/NZ: AS/NZS 60950-1- USA: UL 60950-1- SNE VA- BSMI

Certification

47 CFR FCC- ICES-003:2016 Issue 6- ANSI C63.4:2014- EN 55032:2012+AC2013- EN 55024:2010- EN 61000-3-2:2014- EN 6100-3-3:2013- AS/NZS CISPR 32:2015- VCCI V-3/2015.04- V-4/2012.4- CNS 13438

Safety

CE: CB 60950-1- LVD 60950-1- AUS/NZ: AS/NZS 60950-1- USA: UL 60950-1- SNE VA- BSMI

Product colour

Grey- Silver

LED indicators

Yes

Certification

47 CFR FCC- ICES-003:2016 Issue 6- ANSI C63.4:2014- EN 55032:2012+AC2013- EN 55024:2010- EN 61000-3-2:2014- EN 6100-3-3:2013- AS/NZS CISPR 32:2015- VCCI V-3/2015.04- V-4/2012.4- CNS 13438

Rack mounting

Yes

Mean time between failures (MTBF)

1145157 h

LED indicators

Yes

Storage temperature (T-T)

-20 - 70 °C

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Heat dissipation

147.86 BTU/h

Width

328 mm

Depth

169 mm

Height

43.2 mm

Weight

1.49 kg
