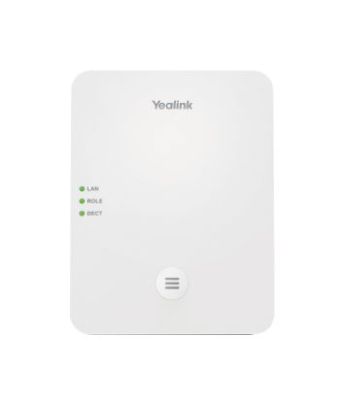

Yealink W80 Dect IP Multi-Cell System

Number of handsets supported (max)

100

Voice codecs

AGC-AJB-AMR-NB-AMR-WB-CNG-G.722-G.726-G.729-OPUS-PCMA-PLC-VAD-iLBC

Security algorithms

AES- HTTPS- SHA-256- SHA-384- SHA-512- SRTP- TLS

Number of VoIP accounts

100

Supported network protocols

SIP v1 (RFC2543)- v2 (RFC3261)- SNTP/NTP- VLAN (802.1Q and 802.1P)- 802.1x- LLDP- STUN- UDP/TCP/TLS

Number of carrier frequencies

2

Management protocols

TFTP/FTP/HTTP/HTTPS/RPS

Number of bases supported (max)

30

DECT standards

CAT-iq2.0

Networking standards

IEEE 802.1Q-IEEE 802.1p-IEEE 802.1x-IEEE 802.3af

Wireless synchronization

Yes

Hearing aid compatibility

Yes

Dual-Tone Multi-Frequency (DTMF)

Yes

XML browser

Yes

User access level

Yes

Over the Air Updates (OTA)

Yes

Keypad lock

Yes

IPUI registration

Yes

Auto-provision

Yes

Number of parallel conferences

3

Do not disturb function

Yes

Conference call

Yes

Call waiting

Yes

Call transfer

Yes

Call hold

Yes

Call forwarding

Yes

Anonymous call rejection

Yes

Anonymous call

Yes

Phonebook capacity (per handset)

100 entries

Number of simultaneous calls (max)

100

Number of WB calls per base supported (max)

8

Number of NB calls per base supported (max)

8

Number of simultaneous calls per handset

2

Caller ID

Yes

Remote phonebook

Yes

Switching between calls

Yes

Mute function

Yes

Speed dialling

Yes

Integrated voicemail

Yes

Redialing

Yes

Message Waiting Indication (MWI) function

Yes

Phonebook search/import/export function

Yes

Reset function

Yes

Call history

Yes

Shared Call Appearance (SCA)

Yes

Emergency call

Yes

System log export

Yes

Wall mountable

Yes

Supported network protocols

SIP v1 (RFC2543)- v2 (RFC3261)- SNTP/NTP- VLAN (802.1Q and 802.1P)- 802.1x- LLDP- STUN- UDP/TCP/TLS

Number of carrier frequencies

2

Frequency range (US)

1920 - 1930 MHz

Frequency range (EU)

1880 - 1900 MHz

Maximum outdoor range

300 m

Maximum indoor range

50 m

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Product colour

White

Wall mountable

Yes

Full duplex

Yes

LED indicators

Yes

Power over Ethernet (PoE)

Yes

Input voltage

100 - 240 V

Output voltage

5 V

Output current

1.2 A

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 95%

Package width

174 mm

Package depth

180 mm

Package height

63 mm

Weight

2.56 kg

Dimensions (WxDxH)

130 x 100 x 25.1 mm

Screws included

Yes

Quick start guide

Yes

Power adapter included

Yes

Products per master (outer) case

10 pc(s)

Master (outer) case width

33.6 cm

Master (outer) case gross weight

3.13 kg

Master (outer) case length

37.5 cm

Master (outer) case height

18.7 cm
