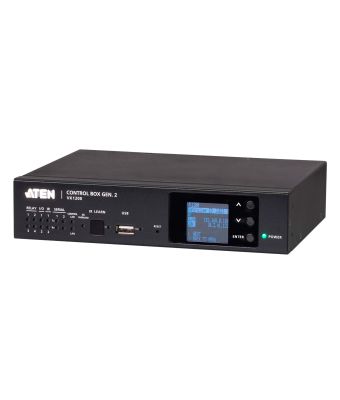

ATEN Compact Control Box with 2 License, Compact Control Box Gen. 2 with Dual LAN
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Features
Product colour
Black
On/off switch
Yes
LED indicators
Yes
Heat dissipation
81 BTU/h
Processor cores
4
Reset button
Yes
Built-in display
Yes
Display type
LCD
Display resolution
128 x 64 pixels
Display diagonal
4.06 cm (1.6")
Number of relay pins
8
Memory
Internal memory
1 GB
Internal storage capacity
8 GB
Storage media type
Flash
Network
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Supported network protocols
ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
Ethernet LAN (RJ-45) ports
2
Ethernet LAN
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
RS-232 ports
2
RS-422 ports
1
RS-485 ports
1
DC-in jack
Yes
Serial interface type
RS-232, RS-232/422/485
Number of analog I/O pins
3
USB port
Yes
USB ports quantity
1
USB port type
USB Type-A
IR connectivity
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Power
AC input voltage
100 - 240 V
Power consumption (max)
4.7 W
AC input frequency
50 - 60 Hz
Power consumption (typical)
4.5 W
Technical details
Package volume
9910.9 cm³
Master (outer) case volume
36528.73 cm³
Packaging content
Terminal block included
Yes
License quantity
2 license(s)
Manual
Yes
Power cord included
Yes
Logistics data
Products per master (outer) case
3 pc(s)
Master (outer) case width
370 mm
Master (outer) case gross weight
6.73 kg
Master (outer) case length
427 mm
Master (outer) case height
232 mm
Country of origin
Taiwan
Master (outer) case net weight
4.88 kg
Weight & dimensions
Width
164.1 mm
Depth
200 mm
Height
44 mm
Weight
1.23 kg
Packaging data
Package width
207 mm
Package depth
414 mm
Package height
117 mm
Package weight
2.08 kg
ATEN Compact Control Box with 2 License, Compact Control Box Gen. 2 with Dual LAN
| Length | 41.4 cm |
| Width | 20.7 cm |
| Height | 11.7 cm |
| Weight | 2.080000 kgs |
