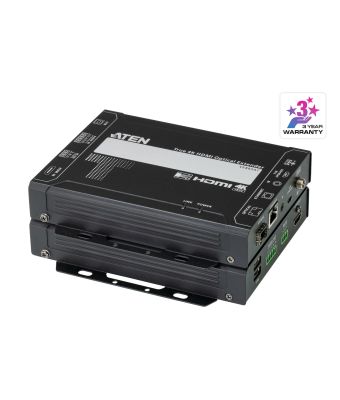

ATEN True 4K HDMI Optical Extender 300M
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Features
Material
Metal
HDCP
Yes
Plug and Play
Yes
Firmware upgradeable
Yes
Electrostatic Discharge (ESD) protection
15 kV
3D
Yes
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Fiber
Maximum transfer distance
300 m
Supported graphics resolutions
3840 x 2160, 4096 x 2160
LED indicators
Yes
Bandwidth
340 MHz
Bandwidth
10.2 Gbit/s
Product colour
Black
Fiber optic wavelengths supported
850 nm
Fiber optic connector
LC
Fiber mode structure
Multi-mode
Electrostatic Discharge (ESD) protection
Yes
Bidirectional
Yes
HDCP version
2.2
Technical details
Material
Metal
HDCP
Yes
Plug and Play
Yes
Firmware upgradeable
Yes
Electrostatic Discharge (ESD) protection
15 kV
3D
Yes
Ethernet LAN
Yes
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Fiber
Maximum transfer distance
300 m
Supported graphics resolutions
3840 x 2160, 4096 x 2160
Bandwidth
340 MHz
Bandwidth
10.2 Gbit/s
Product colour
Black
Connectivity technology
Wired
Compliance certificates
RoHS
Ports & interfaces
USB ports quantity
1
USB version
2
USB connector type
Micro-USB B
Ethernet LAN
Yes
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
Connectivity technology
Wired
Fiber optic connector
LC
Power
Power consumption (transmitter) (max)
7.01 W
Power consumption (receiver) (max)
6.5 W
Operating voltage
5 V
Indication
LED indicators
Yes
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Receiver weight
660 g
Transmitter weight
670 g
Transmitter dimensions (WxDxH)
146.9 x 169.4 x 30 mm
Receiver dimensions (WxDxH)
146.9 x 169.4 x 30 mm
Packaging content
IR receiver included
Yes
Cables included
USB
AC adapter included
Yes
IR emitter included
Yes
ATEN True 4K HDMI Optical Extender 300M
