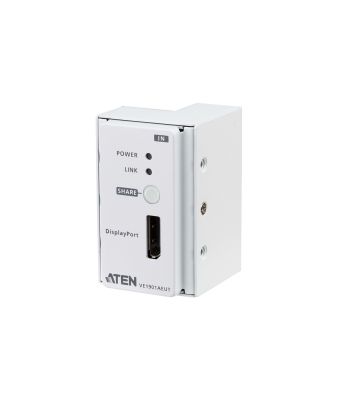

ATEN DP HDBaseT-Lite Transmitter with EU Wall Plate and POH
|
Out of Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Features
Material
Metal
HDCP
Yes
Wall mountable
Yes
Plug and Play
Yes
Impedance
100 Ω
Type
AV transmitter
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a
Maximum transfer distance
60 m
Supported graphics resolutions
1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
LED indicators
Yes
Bandwidth
297 MHz
Bandwidth
10.2 Gbit/s
Product colour
White
Electrostatic Discharge (ESD) protection
Yes
Technical details
Material
Metal
HDCP
Yes
Wall mountable
Yes
Plug and Play
Yes
Impedance
100 Ω
Type
AV transmitter
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a
Maximum transfer distance
60 m
Supported graphics resolutions
1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Bandwidth
297 MHz
Bandwidth
10.2 Gbit/s
Product colour
White
Connectivity technology
Wired
Country of origin
Taiwan
Master (outer) case net weight
1.85 kg
Package volume
2265.35 cm³
Ports & interfaces
HDBaseT port
Yes
DisplayPorts in
1
Serial interface type
RS-232
RJ-45 output ports
1
Connectivity technology
Wired
Indication
LED indicators
Yes
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
44.4 mm
Package depth
239 mm
Height
50 mm
Depth
68.6 mm
Package width
59 mm
Package height
160 mm
Weight
200 g
Package weight
590 g
Packaging data
Package depth
239 mm
Package width
59 mm
Package height
160 mm
Package weight
590 g
Logistics data
Master (outer) case width
250 mm
Master (outer) case length
325 mm
Master (outer) case height
175 mm
Master (outer) case gross weight
3.57 kg
Master (outer) case volume
14158.42 cm³
Products per master (outer) case
5 pc(s)
Master (outer) case net weight
1.85 kg
ATEN DP HDBaseT-Lite Transmitter with EU Wall Plate and POH
| Length | 23.9 cm |
| Width | 5.9 cm |
| Height | 16 cm |
| Weight | 0.590000 kgs |
