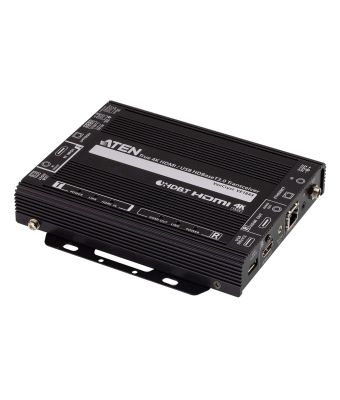

ATEN True 4K HDMI/USB HDBaseT3.0 Transceiver
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Features
Material
Metal
HDCP
Yes
3D
Yes
Impedance
100 Ω
Maximum refresh rate
240 Hz
Type
AV repeater
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat6a
Maximum transfer distance
100 m
Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1400 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
LED indicators
Yes
Bandwidth
600 MHz
Bandwidth
18 Gbit/s
Product colour
Black
Rubber feet
Yes
Front panel control (TX)
Yes
Front panel control (RX)
Yes
HDCP version
2.2
Infrared (IR) frequency range
30 - 56 kHz
Technical details
Material
Metal
HDCP
Yes
3D
Yes
Impedance
100 Ω
Maximum refresh rate
240 Hz
Ethernet LAN
Yes
Type
AV repeater
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat6a
Maximum transfer distance
100 m
Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1400 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
Bandwidth
600 MHz
Bandwidth
18 Gbit/s
Product colour
Black
Connectivity technology
Wired
Country of origin
Taiwan
Master (outer) case net weight
5.87 kg
Ports & interfaces
Remote (IR) input
1
HDBaseT port
Yes
USB ports quantity
2
Serial ports quantity
1
Serial interface type
RS-232
USB version
2
USB connector type
USB Type-A, USB Type-B
Ethernet LAN
Yes
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Audio output
1
Audio input
1
DC-in jack
Yes
Connectivity technology
Wired
Indication
LED indicators
Yes
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
150.9 mm
Package depth
500 mm
Height
30 mm
Depth
171.5 mm
Package width
232 mm
Package height
283 mm
Weight
640 g
Package weight
1.4 kg
Packaging data
Package depth
500 mm
Package width
232 mm
Package height
283 mm
Package weight
1.4 kg
Packaging content
IR receiver included
Yes
Cables included
USB
AC adapter included
Yes
Manual
Yes
IR emitter included
Yes
Logistics data
Master (outer) case gross weight
7.55 kg
Products per master (outer) case
5 pc(s)
Master (outer) case net weight
5.87 kg
ATEN True 4K HDMI/USB HDBaseT3.0 Transceiver
| Length | 50 cm |
| Width | 23.2 cm |
| Height | 28.3 cm |
| Weight | 1.400000 kgs |
