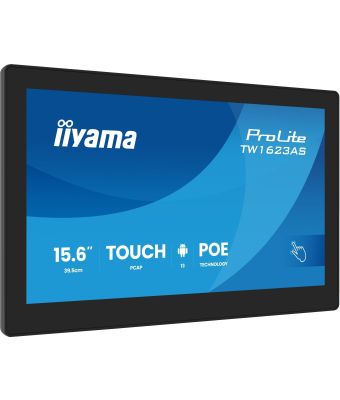

iiyama 15.6” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Display
Panel type
IPS
Display number of colours
16.7 million colours
Number of simultaneous touchpoints
10
Touchscreen
Yes
Active display area (W x H)
344.2 x 193.6 mm
Display technology
LED
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Display brightness
450 cd/m²
HD type
Full HD
Response time
30 ms
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
170°
Viewing angle, vertical
170°
Pixel pitch
0.1792 x 0.1792 mm
Display diagonal (metric)
39.5 cm
Native aspect ratio
16:9
Colour depth
8 bit
Touchscreen technology
Projected capacitive system
Surface hardness
6H
Multi-touch
Yes
Glass thickness
1.8 mm
Ports & interfaces
USB port
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
Microphone in
Yes
Compatible memory cards
SD
Card reader integrated
Yes
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB version
2.0
USB ports quantity
3
Mini HDMI ports quantity
1
Audio
Number of built-in speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Design
Product design
Interactive flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Product colour
Black
Panel mounting interface
100 x 100 mm
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
VESA mounting
Yes
Fingerprint resistant
Yes
Performance
Purpose
Commercial
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Yes
HDCP
Yes
Wi-Fi
Yes
Power
Power consumption (off)
0.3 W
Power consumption (typical)
9 W
Power consumption (standby)
0.5 W
Computer system
Computer system
Yes
Processor cores
4
Processor family
ARM Rockchip
Processor model
RK3568
Processor frequency
2 GHz
Operating system installed
Android
Internal memory
4 GB
Internal storage capacity
32 GB
Processor manufacturer
Rockchip
Built-in processor
Yes
Processor architecture
ARM Cortex-A55
Operating system version
13
Weight & dimensions
Width (with stand)
387 mm
Height (with stand)
244 mm
Depth (with stand)
30.5 mm
Weight (with stand)
1.5 kg
Display width
387 mm
Display depth
30.5 mm
Display height
244 mm
Display weight
1.5 kg
Packaging data
Package width
477 mm
Package depth
477 mm
Package height
298 mm
Package weight
2.45 kg
Quick start guide
Yes
Packaging content
Quick start guide
Yes
Power adapter included
Yes
Certificates
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Technical details
VESA mounting
Yes
Power supply type
External
Panel type
IPS
Cable management
Yes
Number of simultaneous touchpoints
10
Weight (with stand)
1.5 kg
Thin Client
Processor family
ARM Rockchip
Processor model
RK3568
Processor frequency
2 GHz
Operating system installed
Android
Internal memory
4 GB
Internal storage capacity
32 GB
Other features
Power supply type
External
Panel type
IPS
Cable management
Yes
Number of simultaneous touchpoints
10
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
Width (with stand)
387 mm
Viewable size, vertical
19.4 cm
Viewable size, horizontal
34.4 cm
Microphone in
Yes
Height (with stand)
244 mm
Display technology
LED
Depth (with stand)
30.5 mm
Compatible memory cards
SD
Card reader integrated
Yes
Bluetooth version
5.2
Bluetooth
Yes
Audio input
Mini Jack
Quick start guide
Yes
Weight (with stand)
1.5 kg
iiyama 15.6” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²
| Length | 47.7 cm |
| Width | 47.7 cm |
| Height | 29.8 cm |
| Weight | 2.450000 kgs |
