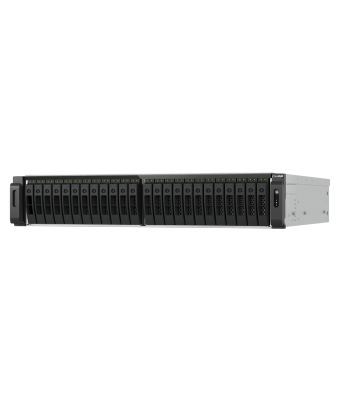

QNAP TS-H3077AFU-R7 - NAS-Server - 30 Schächte - Rack - einbaufähig - SATA 6Gb/s - RAID RAID 0, 1, 5
|
In Stock
€5209.70
€6199.54 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Storage
Total installed storage capacity
0 TB
Storage drives installed
No
Installed storage drive type
No
Number of storage drives installed
0
Supported storage drive types
HDD & SSD
Number of storage drives supported
30
Storage drive interface
Serial ATA III
Hot-swap drive bays
Yes
RAID support
Yes
Supported storage drive interfaces
Serial ATA II, Serial ATA III
Storage drive sizes supported
2.5"
Processor
Processor manufacturer
AMD
Processor threads
16
Processor boost frequency
5.3 GHz
Processor family
AMD Ryzen⢠5
Processor cores
8
Memory
Internal memory type
DDR5
Internal memory
64 GB
Maximum RAM supported
192 GB
Memory slots
4
Flash memory
5000 MB
Memory form factor
UDIMM
ECC
Yes
Network
Ethernet LAN
Yes
Ethernet LAN data rates
100,1000,2500 Mbit/s
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
Ports & interfaces
USB port
Yes
Ethernet LAN (RJ-45) ports
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Hard drive
RAID support
Yes
Design
Cooling type
Active
Fan diameter
6 cm
Product colour
Black, Metallic
Number of fans
3 fan(s)
LED indicators
LAN, Power, SSD, Status
Chassis type
Rack (2U)
Technical details
Type
NAS
Device class
Large Enterprise Business
Backup function
Yes
Backup features
Cloud, iSCSI LUN
Product colour
Black, Metallic
LED indicators
LAN, Power, SSD, Status
Chassis type
Rack (2U)
Buzzer
Yes
Number of fans
3 fan(s)
Performance
Built-in FTP server
Yes
Type
NAS
Device class
Large Enterprise Business
Backup function
Yes
Backup features
Cloud, iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10, Windows 8, Windows 7, Windows 11
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported
IBM AIX 7.1, Solaris 10
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Linux operating systems supported
Ubuntu 14.04
Reset button
Yes
Operating system version
h5.2.1
Operating system installed
QuTS hero
Buzzer
Yes
Snapshot
Yes
Cooling
Cooling type
Active
Fan diameter
6 cm
Number of fans
3 fan(s)
Software
Windows operating systems supported
Windows 10, Windows 8, Windows 7, Windows 11
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported
IBM AIX 7.1, Solaris 10
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Linux operating systems supported
Ubuntu 14.04
Operating system version
h5.2.1
Operating system installed
QuTS hero
Management features
On/off switch
Yes
Reset button
Yes
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
550 W
AC input voltage
100 - 240 V
Redundant power supply (RPS) support
Yes
Power consumption (typical)
380.23 W
Number of power supply units
2
Weight & dimensions
Width
482 mm
Depth
549.7 mm
Height
88.3 mm
Weight
12.7 kg
Package weight
18.7 kg
System requirements
Windows operating systems supported
Windows 10, Windows 8, Windows 7, Windows 11
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported
IBM AIX 7.1, Solaris 10
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Linux operating systems supported
Ubuntu 14.04
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Package weight
18.7 kg
QNAP TS-H3077AFU-R7 - NAS-Server - 30 Schächte - Rack - einbaufähig - SATA 6Gb/s - RAID RAID 0, 1, 5
