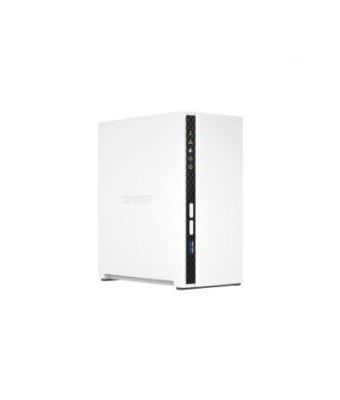

QNAP TS-233 server barebone Mini Tower White

Online RAID migration

Yes

Online RAID expansion

Yes

Disk roaming

Yes

Bad block scan

Yes

Storage drives installed

No

Installed storage drive type

No

Supported storage drive types

HDD & SSD

Number of storage drives supported

2

Storage drive interface

Serial ATA II- Serial ATA III

Hot-swap drive bays

Yes

RAID support

Yes

RAID levels

0- 1- 5- 6- 10- 50- 60- JBOD

Supported storage drive interfaces

Serial ATA

Storage drive sizes supported

3.5"

RAID rebuild

Yes

System drive sizes supported

2.5-3.5"

Processor frequency

2 GHz

Processor family

ARM

Processor cores

4

Number of processors supported

1

Internal memory

2 GB

Maximum RAM supported

2 GB

Flash memory

4000 MB

Dynamic DNS (DDNS)

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

10-100-1000 Mbit/s

Supported network protocols

IPv4- IPv6

Jumbo frames support

Yes

iSCSI support

Yes

DHCP server

Yes

USB port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 2.0 ports quantity

2

Ethernet LAN (RJ-45) ports

1

RAID support

Yes

RAID levels

0- 1- 5- 6- 10- 50- 60- JBOD

Cooling type

Active

Fan diameter

8 cm

Product colour

White

Number of fans

1 fan(s)

LED indicators

HDD- LAN- Status- USB

Chassis type

Mini Tower

Type

NAS

Device class

Home & Home Office

Backup function

Yes

Backup features

Cloud- iSCSI LUN

Product colour

White

LED indicators

HDD- LAN- Status- USB

Chassis type

Mini Tower

Number of fans

1 fan(s)

Harmonized System (HS) code

84714100

Built-in FTP server

Yes

System log

Yes

S.M.A.R.T. support

Yes

Hot spare

Yes

Disk scan

Yes

Browser supported

Apple Safari- Google Chrome- Microsoft Edge- Mozilla Firefox

Type

NAS

Device class

Home & Home Office

Backup function

Yes

Backup features

Cloud- iSCSI LUN

On/off switch

Yes

Windows operating systems supported

Windows 10- Windows 7- Windows 8- Windows 8.1

Server operating systems supported

Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016- Windows Server 2019

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Web-based management

Yes

Reset button

Yes

Operating system version

5.0.0

Operating system installed

QNAP QTS

Access Control List (ACL)

Yes

Remote administration

PPTP- L2TP/IPSec- OpenVPN- WireGuard- QBelt

Cooling type

Active

Fan diameter

8 cm

Fan voltage

12 V

Number of fans

1 fan(s)

Access Control List (ACL)

Yes

Windows operating systems supported

Windows 10- Windows 7- Windows 8- Windows 8.1

Server operating systems supported

Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016- Windows Server 2019

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Operating system version

5.0.0

Operating system installed

QNAP QTS

On/off switch

Yes

Web-based management

Yes

Reset button

Yes

Power supply location

External

Power supply unit (PSU) capacity

65 W

Fan voltage

12 V

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (typical)

10.81 W

Power consumption (sleep)

3.43 W

Number of power supply units

1

External power adapter

Yes

Width

90.2 mm

Depth

156.3 mm

Height

188.6 mm

Weight

1.11 kg

Package weight

1.95 kg

External power adapter

Yes

Cables included

AC- LAN (RJ-45)

Power cables quantity

1

Windows operating systems supported

Windows 10- Windows 7- Windows 8- Windows 8.1

Server operating systems supported

Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016- Windows Server 2019

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Package weight

1.95 kg

Cables included

AC- LAN (RJ-45)
