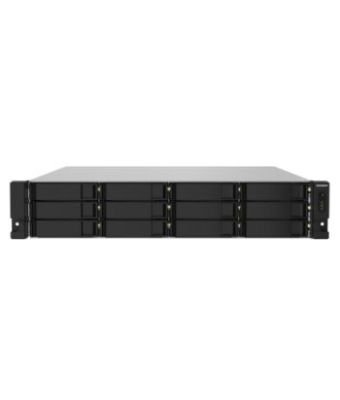

QNAP TS-1232PXU-RP AL324 Ethernet LAN Rack (2U) Black NAS

Online RAID migration

Yes

Online RAID expansion

Yes

Bad block scan

Yes

Storage drives installed

No

Installed storage drive type

No

Supported storage drive types

HDD & SSD

Number of storage drives supported

12

Hot-swap drive bays

Yes

RAID support

Yes

Supported file systems

FAT32-HFS+-NTFS-ext3-ext4

RAID levels

0-1-5-6-10-JBOD

Supported storage drive interfaces

Serial ATA II- Serial ATA III

Storage drive sizes supported

2.5-3.5"

RAID rebuild

Yes

Processor manufacturer

Annapurna Labs

Processor frequency

1.7 GHz

Processor family

Annapurna Labs

Processor model

AL324

Processor cores

4

Internal memory type

DDR4

Internal memory

4 GB

Maximum RAM supported

16 GB

Memory slots

1

Flash memory

512 MB

Memory form factor

UDIMM

Load balancing system

Yes

Link aggregation

Yes

Ethernet LAN data rate supported (max)

10000 Mbit/s

Ethernet LAN

Yes

Ethernet LAN data rates

100-1000-2500-10000 Mbit/s

Wake-on-LAN ready

Yes

Supported network protocols

PPTP- L2TP/IPSec- OpenVPN- QBelt

Jumbo frames support

Yes

iSCSI support

Yes

DHCP server

Yes

DHCP client

Yes

WLAN adapter supported

Yes

USB port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Fiber ports quantity

2

Fiber optic connector

SFP+

Ethernet LAN (RJ-45) ports

2

RAID support

Yes

Supported file systems

FAT32-HFS+-NTFS-ext3-ext4

RAID levels

0-1-5-6-10-JBOD

Cooling type

Active

Fan diameter

7 cm

Product colour

Black

Number of fans

2 fan(s)

LED indicators

HDD- LAN- Status

Chassis type

Rack (2U)

Type

NAS

Device class

Small & Medium Business

Backup function

Yes

Backup features

Cloud- iSCSI LUN

Product colour

Black

Noise level

32.2 dB

Multilingual support

Yes

LED indicators

HDD- LAN- Status

Chassis type

Rack (2U)

Buzzer

Yes

Number of fans

2 fan(s)

Built-in FTP server

Yes

System log

Yes

Share folder

CIFS/SMB

S.M.A.R.T. support

Yes

Hot spare

Yes

Browser supported

Mozilla Firefox- Microsoft Internet Explorer 10+- Apple Safari 7+- Google Chrome

Universal Plug and Play (UPnP)

Yes

Type

NAS

Device class

Small & Medium Business

Backup function

Yes

Backup features

Cloud- iSCSI LUN

On/off switch

Yes

Windows operating systems supported

Windows 10-Windows 7-Windows 8

Server operating systems supported

Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019

Mac operating systems supported

Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina

Linux operating systems supported

Yes

Web-based management

Yes

Security algorithms

256-bit AES-FIPS 140-2-HTTPS-SSH-SSL/TLS

Reset button

Yes

Operating system version

4.4.3

Operating system installed

QNAP Turbo System

Noise level

32.2 dB

Multilingual support

Yes

Buzzer

Yes

Access Control List (ACL)

Yes

Snapshot

Yes

USB copy function

Yes

Cooling type

Active

Fan diameter

7 cm

Fan voltage

12 V

Number of fans

2 fan(s)

Security algorithms

256-bit AES-FIPS 140-2-HTTPS-SSH-SSL/TLS

Access Control List (ACL)

Yes

Windows operating systems supported

Windows 10-Windows 7-Windows 8

Server operating systems supported

Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019

Mac operating systems supported

Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina

Linux operating systems supported

Yes

Operating system version

4.4.3

Operating system installed

QNAP Turbo System

On/off switch

Yes

Web-based management

Yes

Reset button

Yes

Power supply location

Built-in

Power supply unit (PSU) capacity

250 W

Fan voltage

12 V

AC input voltage

100 - 240 V

Power consumption (typical)

83.57 W

Number of power supply units

2

Width

482 mm

Depth

534 mm

Height

89 mm

Weight

11.3 kg

Package weight

17.3 kg

Number of screws

84

Cables included

AC- LAN (RJ-45)

Windows operating systems supported

Windows 10-Windows 7-Windows 8

Server operating systems supported

Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019

Mac operating systems supported

Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina

Linux operating systems supported

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Package weight

17.3 kg

Cables included

AC- LAN (RJ-45)
