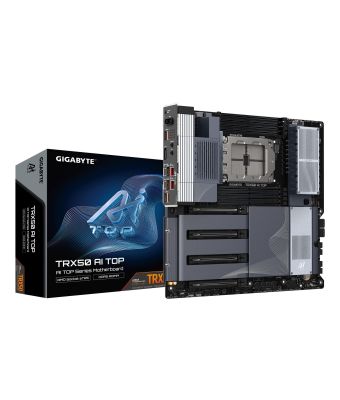

GIGABYTE TRX50 AI TOP-2B Motherboard - AMD Ryzen Threadripper PRO 7000 CPUs, 16+8+4 Phases Digital VRM
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, PCI Express 5.0, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
6
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
USB 3.2 Gen 2x2 connectors
1
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of water pump connectors
5
Number of temperature sensor headers
2
Number of noise detection headers
1
Number of RGB LED pin headers
4
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX50
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Parallel processing technology support
Not supported
Cooling type
Active
Motherboard form factor
Extended ATX
Component for
PC
Warranty period
3 year(s)
Audio
Audio output channels
2.0 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11 x64
Linux operating systems supported
Ubuntu 24.04 LTS
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX50
RAID levels
0, 1, 10
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Cooling type
Active
Audio output channels
2.0 channels
Motherboard form factor
Extended ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series
Processor socket
Socket sTR5
Memory
Number of memory slots
8
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Quad-channel
Maximum internal memory
2 TB
Unbuffered memory
No
Supported memory clock speed (max)
5200 MHz
ECC Ñompatibility
ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, PCI Express 5.0, SATA III
RAID levels
0, 1, 10
Number of storage drives supported
8
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
HDCP
No
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
0
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Headphone outputs
1
HDMI ports quantity
0
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
0
DisplayPorts quantity
1
USB4 Gen 3x2 ports quantity
2
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller
Marvell AQtion AQC113C
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
WLAN controller model
Qualcomm QCNCM865
Features
Power source type
ATX
Windows operating systems supported
Windows 11 x64
Linux operating systems supported
Ubuntu 24.04 LTS
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX50
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Cooling type
Active
Audio output channels
2.0 channels
Motherboard form factor
Extended ATX
Component for
PC
Product colour
Black
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 (Gen 5.x) slots
4
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
5.0
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Power
Power source type
ATX
Video
HDCP
No
DirectX version
12.0
Packaging data
Package width
379 mm
Package depth
397 mm
Package height
105 mm
Package weight
6.47 kg
Software
Windows operating systems supported
Windows 11 x64
Linux operating systems supported
Ubuntu 24.04 LTS
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
379 mm
Package depth
397 mm
Package height
105 mm
Package weight
6.47 kg
Width
305 mm
Depth
330 mm
Packaging content
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included
Yes
Screws included
Yes
Antenna included
Yes
Other features
Height
35 mm
Package width
379 mm
Package depth
397 mm
Package height
105 mm
Package weight
6.47 kg
GIGABYTE TRX50 AI TOP-2B Motherboard - AMD Ryzen Threadripper PRO 7000 CPUs, 16+8+4 Phases Digital VRM
