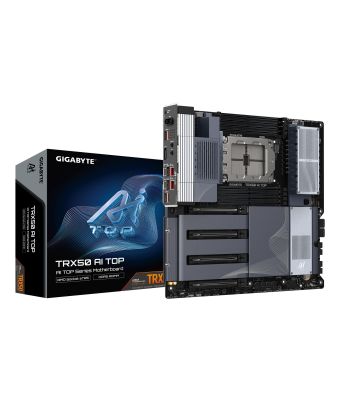

GIGABYTE TRX50 AI TOPMotherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up t
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Total number of SATA connectors
4
Front panel connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
Power fan connector
Yes
Number of SATA III connectors
4
Number of SATA II connectors
0
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX50
Supported processor sockets
sTRX5
Serial port headers
1
PC health monitoring
Fan, Temperature, Voltage
Motherboard form factor
Extended ATX
Component for
PC
Total number of SATA connectors
4
Maximum internal memory supported by processor
2 TB
Warranty period
3 year(s)
Audio
Audio output channels
2.0 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11
Linux operating systems supported
Ubuntu 24.04 LTS
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX50
RAID levels
0, 1, 10
Supported processor sockets
sTRX5
PC health monitoring
Fan, Temperature, Voltage
Audio output channels
2.0 channels
Motherboard form factor
Extended ATX
Component for
PC
Processor
Processor manufacturer
AMD
Maximum internal memory supported by processor
2 TB
Compatible processor series
AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series
Supported processor sockets
sTRX5
Processor socket
Socket sTR5
Memory
Number of memory slots
8
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Quad-channel
Maximum internal memory
2 TB
Unbuffered memory
Yes
ECC Ñompatibility
ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 10
Number of storage drives supported
8
RAID support
Yes
Graphics
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB 2.0 ports quantity
0
VGA (D-Sub) ports quantity
0
HDMI ports quantity
0
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type
10 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Features
Windows operating systems supported
Windows 11
Linux operating systems supported
Ubuntu 24.04 LTS
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX50
Supported processor sockets
sTRX5
PC health monitoring
Fan, Temperature, Voltage
Audio output channels
2.0 channels
Motherboard form factor
Extended ATX
Component for
PC
Audio chip
Realtek ALC4080
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 slots
3
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12
Packaging data
Package width
379 mm
Package depth
397 mm
Package height
105 mm
Package weight
6.47 kg
Software
Windows operating systems supported
Windows 11
Linux operating systems supported
Ubuntu 24.04 LTS
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
Taiwan
Weight & dimensions
Height
35 mm
Package width
379 mm
Package depth
397 mm
Package height
105 mm
Package weight
6.47 kg
Width
305 mm
Depth
330 mm
Packaging content
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Batteries included
Yes
Other features
Height
35 mm
Package width
379 mm
Package depth
397 mm
Package height
105 mm
Package weight
6.47 kg
GIGABYTE TRX50 AI TOPMotherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up t
| Length | 39.7 cm |
| Width | 37.9 cm |
| Height | 10.5 cm |
| Weight | 6.470000 kgs |
