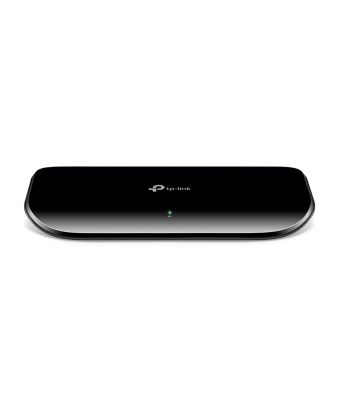

TP-Link 8-Port Gigabit Desktop Network Switch
|
Out of Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Power connector
DC-in jack
Performance
Packet buffer memory
2 MB
Stackable
No
Auto-negotiation
Yes
Maximum cable length
100 m
Harmonized System (HS) code
85176990
Fanless
Yes
Power
Power connector
DC-in jack
Power consumption (max)
3.53 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
0.6 A
DC input voltage
9 V
Power source
DC
Technical details
Product colour
Black
Stackable
No
Rack mounting
No
Sustainability compliance
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Management features
Switch type
Unmanaged
Network
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Flow control support
Yes
Ethernet LAN data rates
10,100,480,800,1000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Data transmission
Jumbo frames
15000
Packet buffer memory
2 MB
MAC address table
4000 entries
Switching capacity
16 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Memory
Packet buffer memory
2 MB
Design
Wall mountable
Yes
Product colour
Black
Stackable
No
LED indicators
Yes
Rack mounting
No
Indication
LED indicators
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
15.8 BTU/h
Weight & dimensions
Width
180 mm
Depth
90 mm
Height
25.5 mm
Packaging data
AC adapter included
Yes
Package type
Box
Package width
110 mm
Package depth
185 mm
Package height
85 mm
User guide
Yes
Package weight
300 g
Cables included
AC
Sustainability
Sustainability compliance
Yes
Logistics data
Harmonized System (HS) code
85176990
Other features
Ethernet LAN data rates
10,100,480,800,1000 Mbit/s
Packaging content
AC adapter included
Yes
User guide
Yes
Cables included
AC
TP-Link 8-Port Gigabit Desktop Network Switch
| Length | 18.5 cm |
| Width | 11 cm |
| Height | 8.5 cm |
| Weight | 0.300000 kgs |
