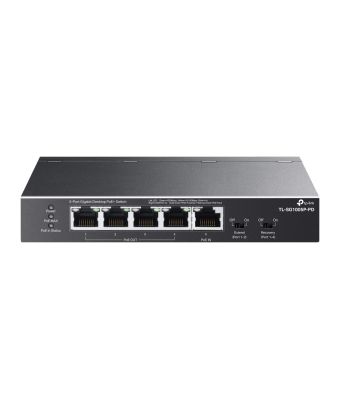

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop Switch with 1-Port PoE++ In and 4-Port PoE+ Out
|
In Stock
€40.86
€48.62 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Auto-negotiation
Yes
IGMP snooping
Yes
Data transmission
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Store-and-forward
Yes
Forwarding rate
7.44 Mpps
Security
IGMP snooping
Yes
Design
Wall mountable
Yes
Product colour
Black
LED indicators
Yes
Number of fans
0 fan(s)
Certification
CE, FCC, RoHS
Performance
Fanless
Yes
Auto-negotiation
Yes
Power
Power consumption (max)
68.59 W
Power supply included
No
Power source
PoE
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
66 W
Power over Ethernet (PoE) ports quantity
5
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
233.206 BTU/h
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
25 mm
Packaging content
User guide
Yes
Packaging data
Package type
Box
User guide
Yes
Technical details
Product colour
Black
Certificates
Certification
CE, FCC, RoHS
Indication
LED indicators
Yes
TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop Switch with 1-Port PoE++ In and 4-Port PoE+ Out
