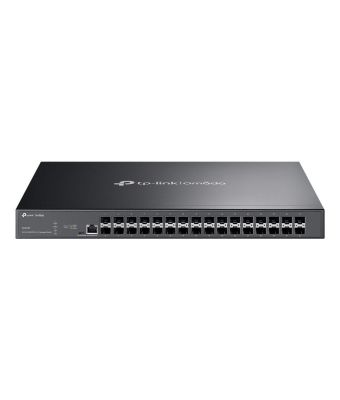

TP-Link Omada SX3032F network switch Managed L2+ Black

ARP inspection

Yes

Switch type

Managed

Quality of Service (QoS) support

Yes

Multicast support

Yes

MIB support

• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

Switch layer

L2+

Configuring Location Settings (CLI)

Yes

Cloud-managed

Yes

Basic switching RJ-45 Ethernet ports quantity

1

Installed SFP+ modules quantity

32

Console port

RJ-45/Micro-USB

Networking standards

IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x

VLAN support

Yes

Spanning tree protocol

Yes

Rate limiting

Yes

Port mirroring

Yes

Number of VLANs

30

Link aggregation

Yes

Flow control support

Yes

Broadcast storm control

Yes

Virtual LAN features

Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN

IPv6 routes

48

IPv4 routes

48

IGMP snooping

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

Jumbo frames

9

Number of static routes

128

Number of IP interfaces

128

Packet buffer memory

24 MB

MAC address table

32000 entries

Switching capacity

640 Gbit/s

Number of queues

8

Jumbo frames support

Yes

Static route

Yes

Forwarding rate

240 Mpps

Number of multicast groups filtered

4000

Number of VLANs

30

Multicast Listener Discovery (MLD) snooping

Yes

Loop protection

Yes

IP-MAC-Port binding

Yes

Authentication

MAC-based authentication, Port-based authentication

Static port security

Yes

SSH/SSL support

Yes

IGMP snooping

Yes

Access Control List (ACL)

Yes

Queue scheduling algorithms

Priority queuing (PQ), SP, Weighted Round Robin (WRR)

Password protection

Yes

Authentication type

AAA, TACACS+

DHCP features

DHCP relay, DHCP server, DHCPv6 snooping

Number of multicast groups filtered

4000

Multicast support

Yes

Multicast Listener Discovery (MLD) snooping

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

IPv4 & IPv6 features

Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP

IP Source Guard (IPSG)

Yes

Product colour

Black

Rack mounting

Yes

Number of fans

2 fan(s)

Redundant fans support

Yes

Power consumption (max)

49.4 W

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power source

AC

Storage temperature (T-T)

40 - 70 °C

Storage relative humidity (H-H)

5 - 90%

Operating temperature (T-T)

-5 - 45 °C

Operating relative humidity (H-H)

10 - 90%

VLAN support

Yes

Number of VLANs

30

Virtual LAN features

Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN

Width

440 mm

Depth

330 mm

Height

44 mm

Quick start guide

Yes

Cables included

Power

IPv4 & IPv6 features

Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP

Packet buffer memory

24 MB

Product colour

Black

Rack mounting

Yes

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Packet buffer memory

24 MB

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

GARP VLAN Registration Protocol (GVRP)

Yes

Quick start guide

Yes

Cables included

Power
