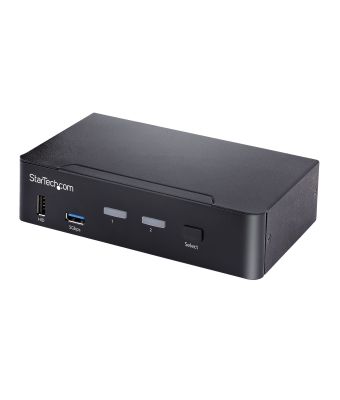

StarTech.com SV231DPUCA KVM switch Black
|
In Stock
€234.73
€279.33 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Ports & interfaces
Console USB ports quantity
6
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort
Number of microphone inputs
1
DisplayPort version
1.2
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Headphone outputs
1
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Console DisplayPorts ports quantity
1
HDCP
Yes
Performance
Chipset
Parade - PS8461, Etron - EJ899I
HDCP
Yes
Data transfer rate (max)
5 Gbit/s
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
5120 x 1440 pixels
Scan interval
3,8,15,30 s
Audio channels
2
Number of displays supported
1
Technical details
Product colour
Black
Rack mounting
No
Scan interval
3,8,15,30 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
IP control
No
USB hub
Yes
Design
Mean time between failures (MTBF)
158000 h
Product colour
Black
Rack mounting
No
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Display
Built-in display
No
Power
Input current
1.2 A
Output current
3:00 AM
Power plug type
Type M
Output voltage
12 V
Power source
AC
Input voltage
100 - 240 V
Video
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
5120 x 1440 pixels
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
140 mm
Depth
160 mm
Height
40 mm
Weight
600 g
Package width
184 mm
Package depth
238 mm
Package height
89 mm
Package weight
1 kg
Packaging data
Package width
184 mm
Package depth
238 mm
Package height
89 mm
Package weight
1 kg
Packaging content
Rubber feet
Yes
Quick installation guide
Yes
AC adapter included
Yes
Other features
IP control
No
Push button
Yes
Hot keys
Yes
Logistics data
Master (outer) case width
300 mm
Master (outer) case length
397 mm
Master (outer) case height
257 mm
Products per master (outer) case
6 pc(s)
StarTech.com SV231DPUCA KVM switch Black
| Length | 23.8 cm |
| Width | 18.4 cm |
| Height | 8.9 cm |
| Weight | 1.000000 kgs |
