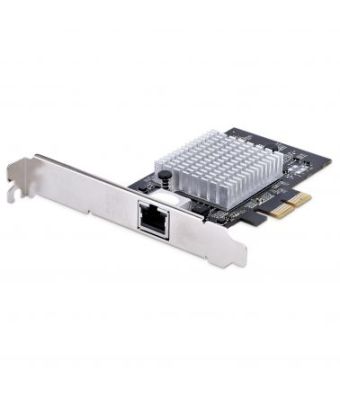

Startech-Com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T

Internal

Yes

PCI version

3.0

Ethernet LAN (RJ-45) ports

1

PCI Card form factor

Full-height (low-profile)

Interface

Ethernet

Host interface

PCIe

Connectivity technology

Wired

Full duplex

Yes

Maximum data transfer rate

10000 Mbit/s

Product colour

Black

Auto MDIX IEEE

Yes

PCI Card form factor

Full-height (low-profile)

Ethernet interface type

2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Jumbo frames

16000

Ethernet LAN

Yes

Cabling technology

10GBase-T

Networking standards

IEEE 1588, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u

Auto MDIX IEEE

Yes

Jumbo frames support

Yes

Full duplex

Yes

Ethernet LAN data rates

10,100,1000,2500,5000,10000 Mbit/s

Maximum data transfer rate

10000 Mbit/s

Product colour

Black

Internal

Yes

PCI Card form factor

Full-height (low-profile)

LED indicators

Yes

Component for

PC

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Linux operating systems supported

Yes

LED indicators

Yes

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Linux operating systems supported

Yes

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-10 - 70 °C

Width

107 mm

Depth

121 mm

Height

22 mm

Weight

70 g

Package width

210 mm

Package depth

145 mm

Package height

35 mm

Package weight

120 g

Package width

210 mm

Package depth

145 mm

Package height

35 mm

Package weight

120 g

Mounting brackets included

Yes

Quick installation guide

Yes

Mounting brackets included

Yes

Quick installation guide

Yes

Auto MDIX IEEE

Yes

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Linux operating systems supported

Yes

Master (outer) case width

445 mm

Master (outer) case length

375 mm

Master (outer) case height

320 mm

Products per master (outer) case

40 pc(s)

Jumbo frames

16000
