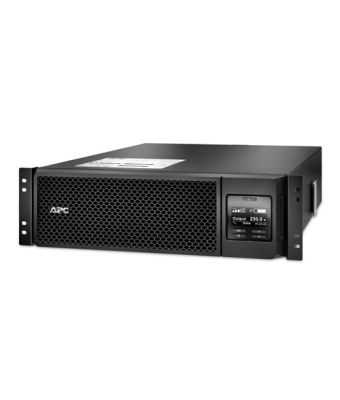

APC Smart-UPS SRT 5000VA 230V Rack Mount
|
In Stock
€5213.09 (Ex. VAT)
€6203.58 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Power
Output frequency regulation
50/60 Hz
Output power
4500 W
Input operation voltage (min)
160 V
Input operation voltage (max)
275 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Efficiency
94.1%
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
3%
Crest factor
3:1
Output power capacity
5 kVA
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
Surge protection
Yes
Noise level
55 dB
Audible alarm(s)
Yes
Features
UPS topology
Double-conversion (Online)
Waveform
Sine
Output frequency regulation
50/60 Hz
Auto-restart
Yes
Output power
4500 W
Input operation voltage (min)
160 V
Input operation voltage (max)
275 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Efficiency
94.1%
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Crest factor
3:1
Audible alarm(s)
Yes
Output power capacity
5 kVA
Input frequency
40 - 70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
SmartSlot
Yes
AC outlets quantity
10 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Power plug
Hardwire
Number of output IEC jumpers
2
Battery
Battery life (max)
5 year(s)
Battery capacity
845 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
1.5 h
Typical backup time at half load
11.8 min
Typical backup time at full load
4 min
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Replacement battery cartridge
APCRBC140
Design
International Protection (IP) code
IP20
Rack capacity
3U
Form factor
Rackmount
Product colour
Black
Certification
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, NOM, VDE
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
8408.59
Compliance certificates
RoHS
Packaging data
Packaging content
Web/SNMP Management Card
Quick installation guide
Yes
Rack mount kit
Yes
Bracket
Yes
Warranty card
Yes
Temperature sensor
Yes
Package width
610 mm
Package depth
960 mm
Package height
330 mm
Package weight
66.9 kg
Certificates
Certification
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, NOM, VDE
Compliance certificates
RoHS
Packaging content
Quick installation guide
Yes
Rack mount kit
Yes
Bracket
Yes
Warranty card
Yes
Temperature sensor
Yes
Packaging content
Web/SNMP Management Card
Sustainability
Sustainability certificates
ENERGY STAR
Weight & dimensions
Package width
610 mm
Package depth
960 mm
Package height
330 mm
Weight
54.4 kg
Width
432 mm
Package weight
66.9 kg
Height
130 mm
Depth
719 mm
Logistics data
Products per pallet
6 pc(s)
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
8408.59
Other features
Packaging content
Web/SNMP Management Card
APC Smart-UPS SRT 5000VA 230V Rack Mount
| Length | 43.2 cm |
| Width | 71.9 cm |
| Height | 13 cm |
| Weight | 67.000000 kgs |
