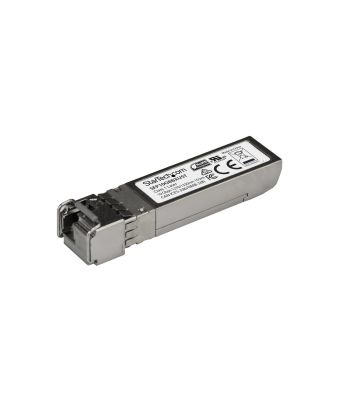

StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBASE-BX~MSA Uncoded SFP+ Transceiver Module
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Performance
SFP transceiver type
Fiber optic
Tx wavelength (min)
1270 nm
Rx wavelength (min)
1330 nm
Wavelength-division multiplexing (WDM)
Yes
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Networking standards
IEEE 802.3ae
Maximum transfer distance
10000 m
Duplex system
Full
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Single-mode fiber (SMF) supported
Yes
SFP transceiver standard
BX
Country of origin
China
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Harmonized System (HS) code
85369010
Features
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Country of origin
China
Certification
CE, FCC, UR
Certificates
Certification
CE, FCC, UR
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Networking standards
IEEE 802.3ae
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Weight & dimensions
Width
13.9 mm
Depth
58.4 mm
Height
12.6 mm
Weight
24 g
Package depth
115 mm
Package width
90 mm
Package height
30 mm
Package weight
54 g
Packaging content
Quantity per pack
1 pc(s)
Technical details
Package width
90 mm
Package height
30 mm
Hot-Plug support
Yes
Maximum transfer distance
10000 m
Duplex system
Full
Compliance certificates
RoHS
Packaging data
Package depth
115 mm
Package width
90 mm
Package height
30 mm
Package weight
54 g
Logistics data
Quantity per pack
1 pc(s)
Country of origin
China
Master (outer) case width
315 mm
Master (outer) case length
405 mm
Master (outer) case height
315 mm
Products per master (outer) case
80 pc(s)
Harmonized System (HS) code
85369010
StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBASE-BX~MSA Uncoded SFP+ Transceiver Module
| Length | 11.5 cm |
| Width | 9 cm |
| Height | 3 cm |
| Weight | 54.000000 kgs |
