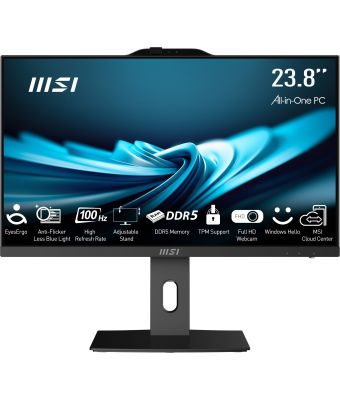

MSI Pro AP242P 14M Intel Core i5 14400 All in One PC, (8GB RAM, 512GB SSD, Windows 11PRO), 23.8 Inch IPS Screen/UHD Graphics/Type-C/USB/LAN/HDMI/DP/WiFi 6E/BT 5.3/VESA
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Display
HD type
Full HD
Pixel pitch
0.2745 x 0.2745 mm
Tilt angle range
-4 - 20°
Panel type
IPS
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
Touchscreen
No
Display brightness
250 cd/m²
Tilt adjustment
Yes
Anti-glare screen
Yes
Processor
Processor generation
Intel® Core™ i5 (14th gen)
Processor cache type
Smart Cache
Processor frequency
2.5 GHz
Processor boost frequency
4.7 GHz
Processor family
Intel® Core™ i5
Processor model
i5-14400
Processor cores
10
Processor threads
16
Processor cache
20 MB
Motherboard chipset
Intel H610
Processor manufacturer
Intel
Processor base power
65 W
Performance-core Max Turbo Frequency
4.7 GHz
Memory
Memory form factor
DIMM/SO-DIMM
Internal memory
8 GB
Memory layout (slots x size)
1 x 8 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory slots
2
Memory slots type
SO-DIMM
Memory clock speed
2800 MHz
Hard drive
Number of storage drives installed
1
Storage media
SSD
Total storage capacity
512 GB
Storage
Number of storage drives installed
1
Storage media
SSD
Total storage capacity
512 GB
Optical drive type
No
SSD interface
M.2
SSD capacity
512 GB
Number of SSDs installed
1
SSD form factor
M.2
Total SSDs capacity
512 GB
NVMe
Yes
M.2 SSD size
2280 (22 x 80 mm)
Graphics
Discrete graphics card
No
On-board graphics card family
Intel® UHD Graphics
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board graphics card model
Intel UHD Graphics 770
On-board GPU manufacturer
Intel
Audio
Audio chip
Realtek ALC897
Number of speakers
2
Audio system
HD
Built-in speaker(s)
Yes
RMS rated power
3 W
Built-in microphone
Yes
Camera
Built-in camera
Yes
Total megapixels
2 MP
Privacy camera
Yes
Camera HD type
Full HD
Optical drive
Optical drive type
No
Network
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Ethernet LAN
Yes
Ethernet LAN data rates
1000 Mbit/s
Bluetooth
Yes
Bluetooth version
5.3
WLAN controller model
Intel Wi-Fi 6E AX211
WLAN controller manufacturer
Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
2
HDMI ports quantity
1
DisplayPorts quantity
1
Headphone outputs
1
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
On/off button
Yes
HDMI version
1.4
USB4 Gen 3x2 ports quantity
0
Number of rear USB ports
4
Number of rear audio ports
2
Number of front USB ports
2
Technical details
Housing material
Plastic
Product type
All-in-One PC
Product colour
Black
Wall mountable
Yes
Warranty period
3 year(s)
Compliance certificates
BSMI, CB, CE, Federal Communications Commission (FCC), UKCA, UL, cUL
Security
Cable lock slot type
Kensington
Trusted Platform Module (TPM)
Yes
Cable lock slot
Yes
Design
Housing material
Plastic
Cable lock slot type
Kensington
Product colour
Black
Wall mountable
Yes
Cable lock slot
Yes
On/off button
Yes
Panel mounting interface
75 x 75 mm
VESA mounting
Yes
Colour name
BLACK
Country of origin
China
Introduction year
2024
Frameless design
Yes
Height adjustment
Yes
Pivot
Yes
Cable management
Yes
Performance
Market positioning
Business
Product type
All-in-One PC
Motherboard chipset
Intel H610
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Cooling type
Active
Software
Operating system installed
Windows 11 Pro
Power
AC adapter power
120 W
Multimedia
Built-in camera
Yes
Total megapixels
2 MP
Privacy camera
Yes
Camera HD type
Full HD
Ergonomics
Tilt adjustment
Yes
Weight & dimensions
Package width
640 mm
Package depth
243 mm
Package height
508 mm
Package weight
8 kg
Width (with stand)
541.9 mm
Depth (with stand)
333.3 mm
Height (with stand)
480 mm
Weight (with stand)
4.63 kg
Packaging data
Package width
640 mm
Package depth
243 mm
Package height
508 mm
Package weight
8 kg
Features
Country of origin
China
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 90%
Certificates
Compliance certificates
BSMI, CB, CE, Federal Communications Commission (FCC), UKCA, UL, cUL
Packaging content
Mouse included
No
Cables included
AC
Keyboard included
No
Other features
On-board graphics card
Yes
SSD interface
M.2
SSD capacity
512 GB
Processor manufacturer
Intel
Number of SSDs installed
1
Country of origin
China
Warranty period
3 year(s)
MSI Pro AP242P 14M Intel Core i5 14400 All in One PC, (8GB RAM, 512GB SSD, Windows 11PRO), 23.8 Inch IPS Screen/UHD Graphics/Type-C/USB/LAN/HDMI/DP/WiFi 6E/BT 5.3/VESA
| Length | 64 cm |
| Width | 24.3 cm |
| Height | 50.8 cm |
| Weight | 8.000000 kgs |
