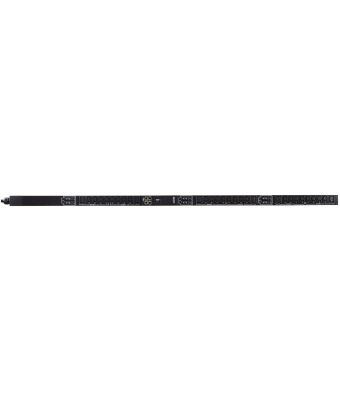

ATEN 30A/32A 30-Outlet 3-Phase Outlet-Metered & Switched eco PDU
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Design
Type
Three-phase
PDU types
Metered, Switched
Display
LCD
Product colour
Black
Certification
EMC
Rack mounting
Yes
Rack capacity
0U
Ports & interfaces
USB ports quantity
1
AC outlets quantity
30 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Power plug
IEC309
Serial ports quantity
2
Ethernet LAN (RJ-45) ports
2
Features
Cable length
3 m
Certification
EMC
Daisy chain
Yes
Security algorithms
SMTP-AUTH, TLS
Password protection
Yes
Reset button
Yes
Management features
Supported network protocols
/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1&V2&V3, Telnet, Modbus (over TCP/IP), Wi-Fi, 802.11 a/b/g/n, IPv6, SMS
Firmware upgradeable via
Network
Firmware upgradeable
Yes
Monitoring
Current, Power, Voltage
Ergonomics
Cable length
3 m
Display
LCD
Power
Nominal input voltage
230 - 400 V
Nominal output voltage
230 V
Maximum current
32 A
Load capacity
22170 VA
AC input frequency
50 - 60 Hz
Circuit breaker
Yes
Certificates
Certification
EMC
Compliance certificates
CE
Sustainability
Sustainability compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Weight
8.43 kg
Width
56 mm
Depth
1790 mm
Height
68 mm
Package width
229 mm
Package depth
1945 mm
Package height
179 mm
Package volume
79853.5 cm³
Package weight
11.2 kg
Packaging content
Manual
Yes
Rack mount kit
Yes
Packaging data
Package width
229 mm
Package depth
1945 mm
Package height
179 mm
Package volume
79853.5 cm³
Package weight
11.2 kg
Technical details
Sustainability compliance
Yes
Compliance certificates
CE
Security
Security algorithms
SMTP-AUTH, TLS
Password protection
Yes
Logistics data
Master (outer) case width
229 mm
Master (outer) case length
1945 mm
Master (outer) case height
179 mm
Master (outer) case gross weight
11.2 kg
Master (outer) case volume
79853.5 cm³
Country of origin
Taiwan
Master (outer) case net weight
11.2 kg
ATEN 30A/32A 30-Outlet 3-Phase Outlet-Metered & Switched eco PDU
