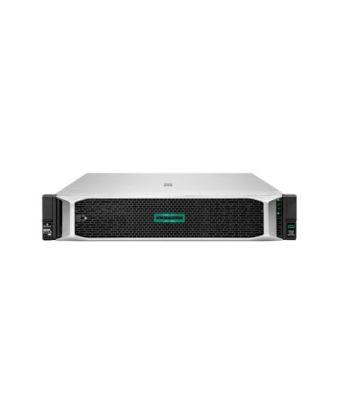

HPE ProLiant DL380 G10 Plus Server P55250-B21
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
General
Type
Server
Product Form Factor
Rack-mountable - 2U
Server Scalability
2-way
Hot-Swap Bays Qty
8
Localisation
Region: Worldwide
Processor / Chipset
CPU
Intel Xeon Silver 4314
Clock Speed
2.4 GHz
Max Turbo Speed
3.4 GHz
Number of Cores
16-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Chipset Type
Intel C621A
Cache Memory
Installed Size
24 MB
Cache Per Processor
24 MB
RAM
Installed Size
32 GB (installed) / 2 TB (max)
Technology
DDR4 SDRAM
Effective Memory Speed
2933 MHz
Rated Memory Speed
3200 MHz
Form Factor
DIMM 288-pin
Slots
32 (Total) / 31 (empty)
Features
Registered, 8-channel memory architecture, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only
Configuration Features
1 x 32 GB
RAM Supported
8 TB Load-Reduced
2 TB registered
8 TB - HPE Persistent Memory - Optane DC Persistent
Hard Drive
Type
No HDD
Storage Controller
Type
1
Buffer Size
4 GB
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Video Memory
16 MB
Video Interfaces
VGA
Networking
Interface (Bus) Type
Open Compute Project mezzanine (OCP) 3.0
Ethernet Ports
2 x 10 Gigabit Ethernet
Ethernet Controller
Broadcom BCM57412
Data Link Protocol
10 Gigabit Ethernet
Remote Management Controller
Integrated Lights-Out 5
Expansion / Connectivity
Bays
8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height
1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode)
1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x8 mode)
Interfaces
1 x HPE iLO - RJ-45
3 x USB 3.0 (1 front, 2 rear)
1 x HPE iLO (service port)
2 x LAN (10Gigabit Ethernet) - SFP+
1 x VGA
Miscellaneous
Included Accessories
CPU standard heatsink, HPE Easy Install Rails with CMA, 6 maximum performance fans
Compliant Standards
AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2
Power
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
800 Watt
Operating System / Software
OS Provided
No operating system
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
Width
44.54 cm
Depth
71 cm
Height
8.75 cm
Environmental Parameters
Min Operating Temperature
Max Operating Temperature
Humidity Range Operating
8 - 90% (non-condensing)
HPE ProLiant DL380 G10 Plus Server P55250-B21
