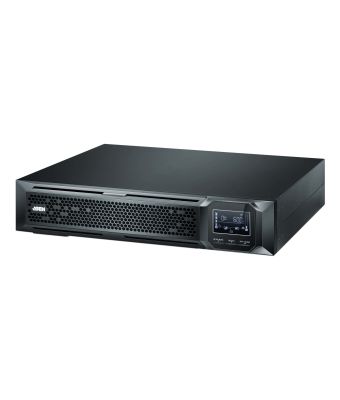

Aten OL1500HV uninterruptible power supply (UPS) Double-conversion (Online) 1500 VA 1500 W 8 AC outlet(s)
|
In Stock
€727.60 (Ex. VAT)
€865.84 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Power
Output voltage regulation
1%
Output power factor
1
Input power factor
0.99
Output power
1500 W
Input operation voltage (min)
110 V
Input operation voltage (max)
300 V
Maximum current
7.2 A
Efficiency
97%
Emergency Power Off (EPO)
Yes
Crest factor
3:1
Output power capacity
1.5 kVA
Charging current
12 A
ECO mode
Yes
Ports & interfaces
Cable length
1.8 m
Emergency Power Off (EPO) connector
Yes
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
8 AC outlet(s)
AC outlet types
C14 coupler, IEC 320
Power plug
C13 coupler
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
LED indicators
Yes
Noise level
50 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Sine
Output voltage regulation
1%
Output power factor
1
Input power factor
0.99
Output power
1500 W
Input operation voltage (min)
110 V
Input operation voltage (max)
300 V
Maximum current
7.2 A
Efficiency
97%
Emergency Power Off (EPO)
Yes
Noise level
50 dB
Crest factor
3:1
Output power capacity
1.5 kVA
ECO mode
Yes
Input frequency
40/70 Hz
Charging current
12 A
Battery
Number of batteries supported
3
Battery voltage
12 V
Battery capacity
9 Ah
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
10.3 min
Typical backup time at full load
2.96 min
Hot-swap battery
Yes
Cold start
Yes
Charging current
12 A
Replacement battery cartridge
1
Design
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Cooling type
Active
Certification
CE
Cable length
1.8 m
Built-in fan
Yes
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
10 - 95%
Technical details
Output frequency
50/60 Hz
Harmonized System (HS) code
85078000
Compliance certificates
RoHS
Cooling
Cooling type
Active
Built-in fan
Yes
Weight & dimensions
Weight
14.3 kg
Width
880 mm
Height
410 mm
Depth
438 mm
Packaging data
Cables included
Power load cable, RS-232, USB cable
Rack mount kit
Yes
Manual
Yes
Logistics data
Harmonized System (HS) code
85078000
Certificates
Certification
CE
Packaging content
Cables included
Power load cable, RS-232, USB cable
Rack mount kit
Yes
Manual
Yes
Aten OL1500HV uninterruptible power supply (UPS) Double-conversion (Online) 1500 VA 1500 W 8 AC outlet(s)
| Length | 88 cm |
| Width | 43.8 cm |
| Height | 41 cm |
| Weight | 14.300000 kgs |
