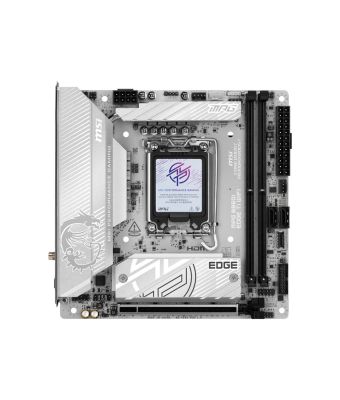

MSI MPG B860I EDGE TI WIFI motherboard Intel B860 LGA 1851 (Socket V1) mini ITX
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
Audio connector
Yes
Supported storage drive interfaces
M.2, SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
mSATA ports quantity
0
TPM connector
Yes
S/PDIF out connector
Yes
Power fan connector
Yes
Number of SATA connectors
0
Number of SATA III connectors
2
Number of SATA II connectors
0
CPU fan connector
Yes
Chassis intrusion connector
Yes
RGB LED pin header
Yes
Number of CPU fan connectors
1
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
On-board graphics card
No
HDMI version
2.1
Motherboard form factor
mini ITX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
RAID levels
0, 1
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Core Ultra (Series 2)
Processor socket
LGA 1851 (Socket V1)
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Maximum internal memory
128 GB
Unbuffered memory
Yes
ECC Ñompatibility
Non-ECC
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA
RAID levels
0, 1
RAID support
Yes
Graphics
On-board graphics card
No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Thunderbolt ports quantity
1
Microphone in
Yes
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type
5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.4
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
WLAN controller model
Killer Wi-Fi BE1750x
Features
Power source type
ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Product colour
White
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
BIOS
Clear CMOS button
Yes
Power
Power source type
ATX
Weight & dimensions
Width
170 mm
Depth
170 mm
Packaging content
Cables included
SATA
Screws included
Yes
Antenna included
Yes
Other features
mSATA ports quantity
0
MSI MPG B860I EDGE TI WIFI motherboard Intel B860 LGA 1851 (Socket V1) mini ITX
