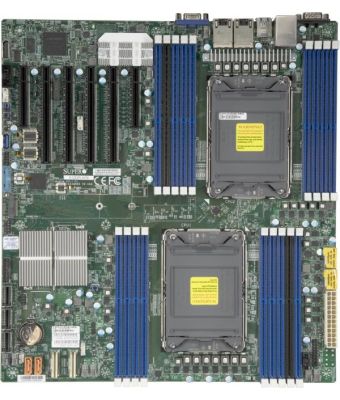

Supermicro Mainboard X12DPi-N6 E-ATX Dual Sockel 4189 Single
|
Out of Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
1
Supported storage drive interfaces
M.2, SATA
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
TPM connector
Yes
Number of SATA III connectors
14
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel C621A
PC health monitoring
LED, Temperature, Voltage
Motherboard form factor
Extended ATX
Component for
Server
Performance
Motherboard chipset family
Intel
Motherboard chipset
Intel C621A
RAID levels
0, 1, 5, 10
PC health monitoring
LED, Temperature, Voltage
Motherboard form factor
Extended ATX
Component for
Server
Processor
Processor manufacturer
Intel
Processor cores
40
Compatible processor series
Intel® Xeon®
Processor socket
LGA 4189
Memory
Number of memory slots
18
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
Supported memory clock speeds
2666,2933,3200 MHz
Maximum internal memory
4 TB
Maximum RDIMM memory
4 TB
Storage controllers
Supported storage drive interfaces
M.2, SATA
RAID levels
0, 1, 5, 10
RAID support
Yes
Graphics
Graphics card family
ASPEED
Graphics card
AST2600
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
4
VGA (D-Sub) ports quantity
2
Serial ports quantity
2
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
LAN controller
Intel® I350
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset family
Intel
Motherboard chipset
Intel C621A
PC health monitoring
LED, Temperature, Voltage
Motherboard form factor
Extended ATX
Component for
Server
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 (Gen 4.x) slots
4
PCI Express x8 (Gen 4.x) slots
2
BIOS
BIOS type
UEFI AMI
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Video
Graphics card family
ASPEED
Graphics card
AST2600
Software
Bundled software
Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Weight & dimensions
Width
304.8 mm
Depth
330.2 mm
Packaging content
Bundled software
Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Supermicro Mainboard X12DPi-N6 E-ATX Dual Sockel 4189 Single
