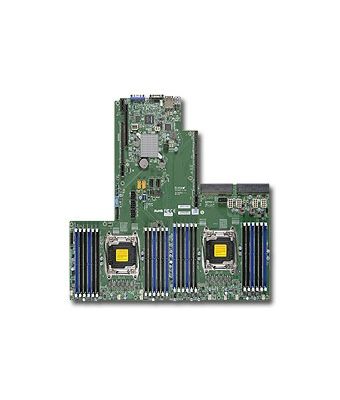

Supermicro X10DRU-i+ Intel® C612 LGA 2011 (Socket R)
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Technical details
Motherboard chipset
Intel® C612
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2
Number of processors supported
2
Number of DIMM slots
24
ECC supported by processor
Yes
Compliance certificates
RoHS
Performance
Motherboard chipset
Intel® C612
RAID levels
0, 1, 5, 10
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2
Processor
Processor manufacturer
Intel
ECC supported by processor
Yes
Processor thermal power (max)
160 W
Intel Xeon series
E5-2600
Processor socket
LGA 2011 (Socket R)
Supported QPI
9.6 GT/s
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
Supported memory clock speeds
1600,1866,2133 MHz
Supported RDIMM module capacity
4GB, 8GB, 16GB, 64GB
Maximum internal memory
1.5 TB
Maximum RDIMM memory
1.5 TB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0, 1, 5, 10
RAID support
Yes
Graphics
On-board graphics card model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
TPM connector
Yes
Number of SATA III connectors
10
Number of COM connectors
1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
COM ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Features
Motherboard chipset
Intel® C612
Expansion slots
PCI Express x8 (Gen 3.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
4
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
432 mm
Depth
427 mm
Other features
PCI Express x8 (Gen 3.x) slots
1
Supported RDIMM module capacity
4GB, 8GB, 16GB, 64GB
Number of processors supported
2
Number of DIMM slots
24
Intel Xeon series
E5-2600
Supported LRDIMM module capacity
32GB, 64GB
Maximum LRDIMM memory
1.5 TB
Supermicro X10DRU-i+ Intel® C612 LGA 2011 (Socket R)
