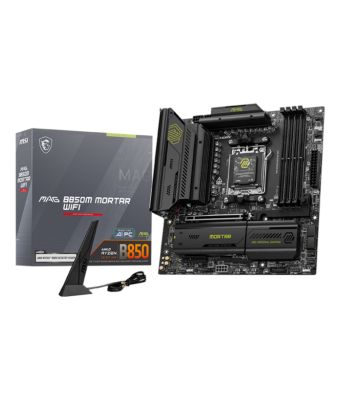

MSI MAG B850M MORTAR WIFI motherboard AMD B850 Socket AM5 micro ATX
|
In Stock
€189.88 (Ex. VAT)
€225.96 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Internal I/O
Number of M.2 (M) slots
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Total number of SATA connectors
4
Front panel connector
Yes
Supported storage drive interfaces
M.2
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
mSATA ports quantity
0
Number of SATA connectors
0
Number of SATA III connectors
4
Number of SATA II connectors
0
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Number of CPU fan connectors
2
Number of water pump connectors
1
Number of RGB LED pin headers
3
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B850
Supported processor sockets
Socket AM5
On-board graphics card
No
HDMI version
2.1
Motherboard form factor
micro ATX
Component for
PC
Total number of SATA connectors
4
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B850
RAID levels
0, 1, 10
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
4800,5600,6400,8200 MHz
Maximum internal memory
256 GB
Supported memory clock speed (max)
8200 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2
RAID levels
0, 1, 10
Number of storage drives supported
7
RAID support
Yes
Graphics
On-board graphics card
No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB 2.0 ports quantity
0
VGA (D-Sub) ports quantity
0
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type
5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.4
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Features
Windows operating systems supported
Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B850
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC4080
Product colour
Black
Expansion slots
Number of M.2 (M) slots
3
PCI Express x16 (Gen 3.x) slots
1
PCI Express x4 slots
1
PCI Express x16 slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
6.5
System Management BIOS (SMBIOS) version
3.7
Software
Windows operating systems supported
Windows 11 x64
Weight & dimensions
Width
243.8 mm
Depth
243.8 mm
Other features
mSATA ports quantity
0
MSI MAG B850M MORTAR WIFI motherboard AMD B850 Socket AM5 micro ATX
| Width | 24.38 cm |
| Height | ts_dimensions_length=24.38 cm |
| Weight | 1.000000 kgs |
