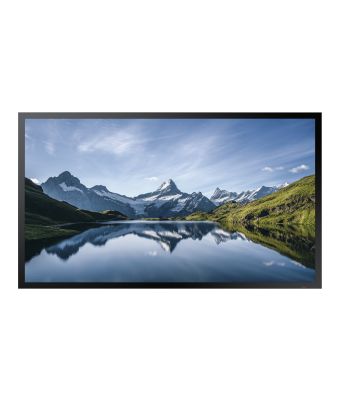

OH46B-S/SMART LCD Signage Outdoor
|
In Stock
€3261.04
€3880.64 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Display
Panel type
VA
Dynamic contrast ratio marketing name
Mega Contrast
Touchscreen
No
Display technology
LCD
Colour gamut
72%
Display diagonal
116.8 cm (46")
Display resolution
1920 x 1080 pixels
Display brightness
3500 cd/m²
HD type
Full HD
Response time
6 ms
Contrast ratio (typical)
6000:01:00
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.53 x 0.53 mm
Vertical scan range
24 - 75 Hz
Horizontal scan range
15 - 135 kHz
RGB colour space
NTSC
Glass thickness
5 mm
Glass film
AG/AR Film
Ports & interfaces
USB port
Yes
HDMI version
2
Wi-Fi
No
DisplayPorts quantity
0
Ethernet LAN
Yes
HDMI ports quantity
2
DVI port
No
Audio (L/R) out
1
Ethernet LAN (RJ-45) ports
2
RS-232 interface
Yes
USB ports quantity
1
Audio
Built-in speaker(s)
No
Design
Product design
Digital signage flat panel
Orientation
Horizontal/Vertical
Bezel width (top)
2.49 cm
Bezel width (side)
2.49 cm
Bezel width (bottom)
2.49 cm
Product colour
Black
Panel mounting interface
995 x 500 mm
Certification
Class A
60950-1, 62368-1
VESA mounting
Yes
Screen shape
Flat
Bezel colour
Black
Performance
Purpose
Universal
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
2.2
Wi-Fi
No
Power
Power consumption (sleep)
0.5 W
Power consumption (typical)
430 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Computer system
Computer system
Yes
Computer system type
System on Chip (SoC)
Operating system installed
Tizen 6.5
Built-in processor
Yes
Weight & dimensions
Display width
1069 mm
Display depth
85 mm
Display height
623.6 mm
Display weight
36 kg
Packaging data
Package width
1156 mm
Package depth
200 mm
Package height
713 mm
Package weight
40.5 kg
Operational conditions
Operating temperature (T-T)
-30 - 50 °C
Operating relative humidity (H-H)
10 - 80%
Certificates
Certification
Class A
60950-1, 62368-1
Technical details
VESA mounting
Yes
Panel type
VA
Glass protection
Yes
Thin Client
Operating system installed
Tizen 6.5
Other features
Panel type
VA
Glass protection
Yes
Wi-Fi
No
Flash memory
8000 MB
Display technology
LCD
Bezel width (top)
2.49 cm
Bezel width (side)
2.49 cm
Bezel width (bottom)
2.49 cm
OH46B-S/SMART LCD Signage Outdoor
| Length | 20 cm |
| Width | 115.6 cm |
| Height | 71.3 cm |
| Weight | 40.500000 kgs |
