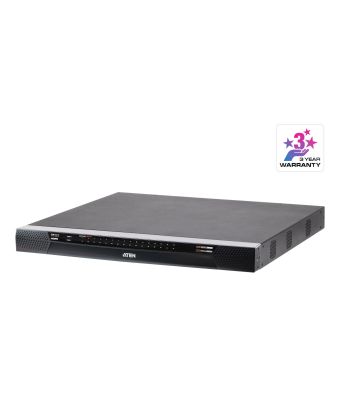

ATEN 32 Port CAT5 High Density KVM Switch over IP with 1 local console and 8 remote share user access (8 bus), Cascade, Panel Array Mode, Out-of-band access, Dual NIC, Dual Power, Virtual Media Support
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Ports & interfaces
Console USB ports quantity
2
Console ports
HDMI, USB A, VGA (D-Sub)
USB connector type
Mini-USB B, USB Type-A
Number of microphone inputs
1
Serial ports quantity
1
Serial port type
RJ-45
Number of computers controlled
32
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
HDMI/VGA
Audio connections
Yes
Headphone outputs
1
Console HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Performance
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
1,255 s
Technical details
Product colour
Black
Scan interval
1,255 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Cascadable
Yes
Design
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Cascadable
Yes
Housing material
Metal
Display
Built-in display
No
Power
Input current
1:00 AM
Power source
AC
AC input frequency
50-60 Hz
Power consumption (typical)
77.2 W
Input voltage
100 - 240 V
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
412.1 mm
Depth
433.6 mm
Height
44 mm
Weight
5.29 kg
Other features
Push button
Yes
Hot keys
Yes
ATEN 32 Port CAT5 High Density KVM Switch over IP with 1 local console and 8 remote share user access (8 bus), Cascade, Panel Array Mode, Out-of-band access, Dual NIC, Dual Power, Virtual Media Support
| Length | 43.36 cm |
| Width | 41.21 cm |
| Height | 4.40 cm |
| Weight | 5.290000 kgs |
