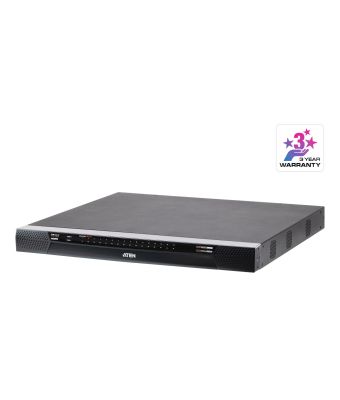

ATEN 1Remote /1 Local 32 port CAT5 KVM over the NET Switch w Virtual Media & Audio & Dual Power
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Ports & interfaces
Console USB ports quantity
2
Console ports
HDMI, USB A, VGA (D-Sub)
Serial ports quantity
1
Serial port type
RJ-45
Number of computers controlled
32
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
HDMI/VGA
Audio connections
Yes
USB 2.0 Type-B ports quantity
1
USB 2.0 Type-A hub ports quantity
3
Console HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Performance
Firmware upgradeable
Yes
HD type
Full HD+
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
1,255 s
Technical details
Product colour
Black
Scan interval
1,255 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Cascadable
Yes
Design
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Cascadable
Yes
Housing material
Metal
Country of origin
Taiwan
Power
Input current
1:00 AM
Power source
AC
AC input frequency
50/60 Hz
Power consumption (typical)
31.7 W
Input voltage
100 - 240 V
Video
HD type
Full HD+
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Features
Country of origin
Taiwan
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
412.1 mm
Depth
433.6 mm
Height
44 mm
Weight
5.03 kg
Package width
506 mm
Package depth
575 mm
Package height
130 mm
Package weight
7.04 kg
Packaging data
Package width
506 mm
Package depth
575 mm
Package height
130 mm
Package weight
7.04 kg
Other features
Push button
Yes
Hot keys
Yes
Logistics data
Country of origin
Taiwan
Master (outer) case width
506 mm
Master (outer) case length
575 mm
Master (outer) case height
130 mm
Master (outer) case gross weight
7.04 kg
Harmonized System (HS) code
84718000
ATEN 1Remote /1 Local 32 port CAT5 KVM over the NET Switch w Virtual Media & Audio & Dual Power
| Length | 57.5 cm |
| Width | 50.6 cm |
| Height | 13 cm |
| Weight | 7.040000 kgs |
