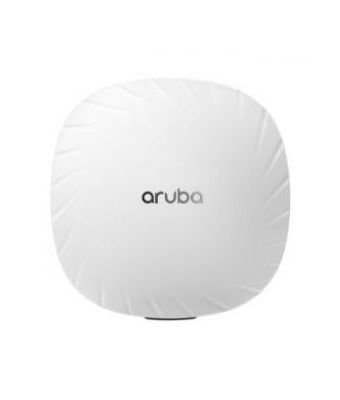

HPE Aruba AP-535 (RW) 3550 Mbit/s Power over Ethernet

Device Type

Radio access point

Ruggedized Design

Indoor

Width

24 cm

Depth

24 cm

Height

5.7 cm

Weight

1.27 kg

Form Factor

External

Connectivity Technology

Wireless

Data Transfer Rate

2.4 Gbps

Line Coding Format

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)

Spread Spectrum Method

OFDM, DSSS

Frequency Band

2.4 GHz, 5 GHz

Performance

Maximum data rate (2.4 GHz): 1.150 Mbps Maximum data rate (5 GHz): 2.4 Gbps Aggregate bandwidth: 3.55 Gbps

Capacity

Wireless clients per Wi-Fi radio: 1024 OFDMA units: 37 BSSIDs per radio: 16

Status Indicators

System, status

Features

Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), High-Throughput (HT) support, 4x4 MU-MIMO technology, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyser, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT)

Encryption Algorithm

WPA, WPA2, WPA3

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax

Antenna

Internal

Antenna Qty

4

Directivity

Omni-directional

Gain Level

5.4 dBi

Internet of Things (IoT) Compatible

Yes

Communications Technology

Bluetooth, Zigbee

Interfaces

1 x HPE Smart Rate - RJ-45 1 x 5GBase-T - RJ-45 1 x USB 2.0 - Type A 1 x console - micro-USB

Included Accessories

Base bracket

MTBF

114 years

Compliant Standards

EN 60950, IEC 60950, UL 60950, UL 2043, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, RED 2014/53/EU

Power Over Ethernet (PoE) Supported

PoE

Power Consumption Operational

26.4 Watt

OS Required

ArubaOS, InstantOS

Shipping Width

28.5 cm

Shipping Depth

30 cm

Shipping Height

10.5 cm

Shipping Weight

1.93 kg

Service & Support

Limited warranty - lifetime

Min Operating Temperature

Max Operating Temperature

Humidity Range Operating

5 - 93% (non-condensing)
