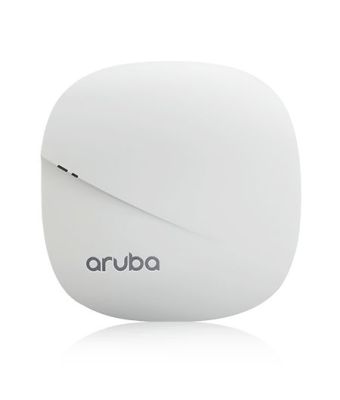

Aruba HPE company IAP-207 (RW) WLAN access point

Device Type

Radio access point

Ruggedized Design

Indoor

Width

15 cm

Depth

15 cm

Height

4 cm

Weight

380 g

Form Factor

In-ceiling

Connectivity Technology

Wireless

Data Transfer Rate

867 Mbps

Line Coding Format

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Spread Spectrum Method

OFDM, DSSS

Frequency Band

2.4 GHz, 5 GHz

Status Indicators

Power, status, link/activity

Features

Auto-uplink (auto MDI/MDI-X), DFS support, wall mountable, Trusted Platform Module (TPM), reset button, 2T2R MIMO technology, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Energy Efficient Ethernet, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), ceiling mountable, security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD)

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac

Antenna

Internal

Antenna Qty

4

Directivity

Omni-directional

Interfaces

1 x 1000Base-T - RJ-45 1 x console - RJ-45

Included Accessories

Mounting brackets

MTBF

753,457 hours

Compliant Standards

EN 60950, IEC 60950, UL 60950, CB, IC, UL 2043, FCC, R&TTE, EN 60601-1-2, cTUVus, EN 60601-1, FIPS, Directive 72/23/EEC, EN 300 328, EN 301 893

Power Over Ethernet (PoE) Supported

PoE

Power Consumption Operational

12.5 Watt

OS Provided

InstantOS

Service & Support

Limited warranty - lifetime

Min Operating Temperature

Max Operating Temperature

Humidity Range Operating

5 - 93% (non-condensing)
