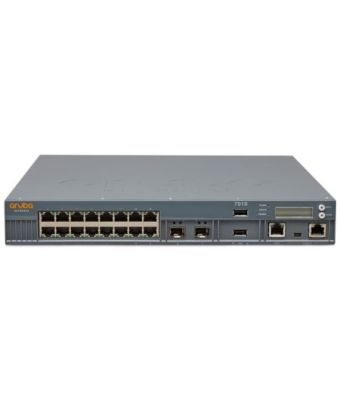

Hpe Aruba 7010 (Rw) Network Management Device 4000 Mbit/S Lan Power Over Ethernet (Poe)

Device Type

Network management device

Height (Rack Units)

1U

Built-in Devices

Status LCD

Width

31.8 cm

Depth

33.7 cm

Height

4.4 cm

Weight

3.4 kg

Form Factor

Rack-mountable

Ports Qty

16

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Performance

AES throughput: 3.6 Gbps Firewall throughput: 4 Gbps 3DES throughput: 2.4 Gbps

Capacity

Maximum number of access points: 32 Concurrent devices: 2048 Virtual interfaces (VLANs): 4094 Concurrent GRE tunnels: 1024 Maximum number of access points (remote): 32 Concurrent tunneled ports: 1024 Concurrent IPSec sessions: 1024 Concurrent SSL fallback sessions: 1024 Active firewall sessions: 32768

Status Indicators

Power, status

Features

VPN support, IPv6 support, IPv4 support, Adaptive Radio Management (ARM), ClientMatch

Interfaces

16 x 1000Base-T (PoE+) - RJ-45 2 x 1000Base-X - SFP (mini-GBIC) 2 x USB 2.0 1 x management - RJ-45 1 x micro-USB

MTBF

232,843 hours

Compliant Standards

C-Tick, CISPR 22 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, MIC, ICES-003 Class A, AS/NZS 3548, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1 Second Edition, KCC, ANATEL, cTUVus, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KCC KN22 Class B, AS/NZS CISPR 22 Class B, FCC Part 15 Class B, CNS 13438 Class B, EN 60950:2005

Power Over Ethernet (PoE) Supported

PoE+

Power Device

Internal power supply

Power Consumption Operational

190 Watt

Service & Support

Limited warranty - parts and labour - 1 year

Min Operating Temperature

Max Operating Temperature

Humidity Range Operating

10 - 95% (non-condensing)
