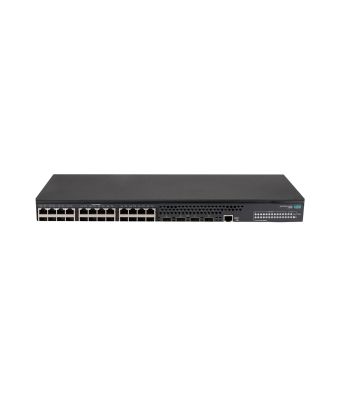

Hewlett Packard Enterprise FlexNetwork 5140 24G 4SFP+ EI Managed L3 Gigabit Ethernet (10/100/1000) 1U
|
Out of Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Network
IGMP snooping
Yes
IPv6 FIB entries
256
IPv4 FIB entries
512
Auto-sensing
Yes
Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
IPv4 & IPv6 features
IPv6 FIB entries
256
IPv4 FIB entries
512
Performance
Stackable
Yes
Physical stacking (units)
9
Memory type
SDRAM
Internal memory
512 MB
Flash memory
256 MB
Technical details
Physical stacking (units)
9
Form factor
1U
Stackable
Yes
Rack mounting
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45
Data transmission
Throughput
96 Mpps
Latency (1 Gbps)
5 µs
Latency (10 Gbps)
3 µs
MAC address table
16384 entries
Switching capacity
128 Gbit/s
Jumbo frames support
Yes
Security
Authentication
MAC-based authentication
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
HWTACACS, RADIUS
DHCP features
DHCP server
Multicast features
Multicast support
Yes
Protocols
Routing protocols
OSPF, OSPFv2, OSPFv3, RIP, RIP-2
IPv6 FIB entries
256
IPv4 FIB entries
512
Memory
Memory type
SDRAM
Internal memory
512 MB
Flash memory
256 MB
Design
Form factor
1U
Stackable
Yes
Rack mounting
Yes
Power
Power consumption (max)
24 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-5 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
440 mm
Depth
160 mm
Height
43.6 mm
Weight
2.5 kg
Hewlett Packard Enterprise FlexNetwork 5140 24G 4SFP+ EI Managed L3 Gigabit Ethernet (10/100/1000) 1U
