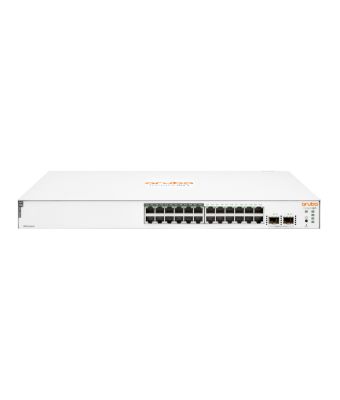

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Network
IGMP snooping
Yes
Auto-sensing
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
VLAN support
Yes
Performance
Packet buffer memory
1.5 MB
Processor frequency
800 MHz
Memory type
RDRAM
Internal memory
512 MB
Flash memory
256 MB
Built-in processor
Yes
Processor model
ARM Cortex-A9
Technical details
Form factor
1U
Processor frequency
800 MHz
Rack mounting
Yes
Built-in processor
Yes
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Cloud-managed
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Data transmission
Throughput
38.68 Mpps
Latency (10-100 Mbps)
5.2 µs
Latency (1 Gbps)
2.8 µs
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
52 Gbit/s
Jumbo frames support
Yes
Security
SSH/SSL support
Yes
IGMP snooping
Yes
DHCP features
DHCP client
Memory
Packet buffer memory
1.5 MB
Memory type
RDRAM
Internal memory
512 MB
Flash memory
256 MB
Design
Form factor
1U
Rack mounting
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
195 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
15 - 95%
Weight & dimensions
Width
253 mm
Depth
443 mm
Height
43.9 mm
Weight
3.47 kg
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
| Length | 44.30 cm |
| Width | 25.30 cm |
| Height | 4.39 cm |
| Weight | 4.800000 kgs |
