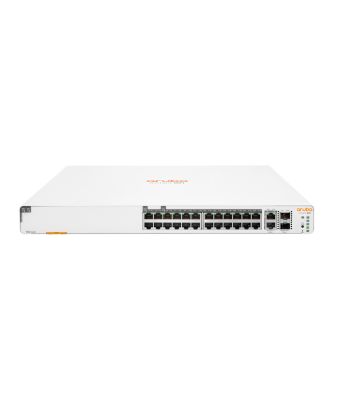

HPE Aruba Networking Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Managed L2+
|
In Stock
€563.36 (Ex. VAT)
€670.40 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2+
Cloud-managed
Yes
Ports & interfaces
SFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
10G Ethernet (copper) ports quantity
2
Network
Auto-sensing
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Routing entries
32
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Auto-negotiation
Yes
Half duplex
Yes
IGMP snooping
Yes
Data transmission
Jumbo frames
9216
Throughput
95 Mpps
Latency (10-100 Mbps)
4.4 µs
Latency (1 Gbps)
2.2 µs
Latency (10 Gbps)
1.1 µs
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Jumbo frames support
Yes
Security
Authentication
Port-based authentication
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
RADIUS
DHCP features
DHCP client
Protocols
Management protocols
SNMPv1, SNMPv2c, SNMPv3
Supported network protocols
SNTP
Design
Form factor
1U
Stackable
Yes
Rack mounting
Yes
Performance
Physical stacking (units)
4
Processor frequency
2000 MHz
Built-in processor
Yes
Processor model
ARM Cortex-A9
Stackable
Yes
Auto-negotiation
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
15 - 95%
Operating altitude
0 - 3000 m
Virtual LAN features
VLAN support
Yes
Weight & dimensions
Width
350.5 mm
Depth
442.5 mm
Height
44 mm
Weight
4.7 kg
Technical details
Physical stacking (units)
4
Form factor
1U
Stackable
Yes
Processor frequency
2000 MHz
Rack mounting
Yes
Built-in processor
Yes
HPE Aruba Networking Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Managed L2+
| Length | 44.25 cm |
| Width | 35.05 cm |
| Height | 4.40 cm |
| Weight | 4.700000 kgs |
