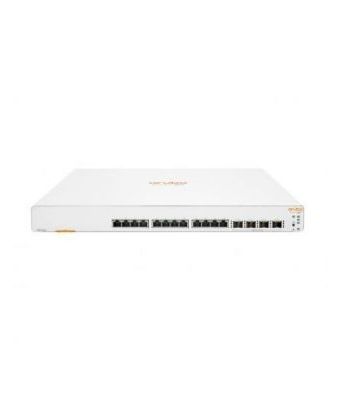

Hewlett Packard Enterprise Aruba JL805A Instant On 1960 12XGT 4SFP+ Managed L2+ 10G Ethernet

Device Type

Switch - 12 ports - Managed

Enclosure Type

Rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

12 x 100/1000/10000 + 4 x 10 Gigabit SFP+

Performance

Capacity

MAC address entries: 16000 IPv4 routes (static): 512 IPv6 routes (static): 512

MAC Address Table Size

16000 entries

Jumbo Frame Support

9216 bytes

Routing Protocol

Static IP routing

Remote Management Protocol

RADIUS, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS

Authentication Method

RADIUS

Features

EEE, ARP support, auto-uplink (auto MDI/MDI-X), DHCP support, TPM, VLAN support, auto voice VLAN, LLDP-MED, LACP, STP support, BPDU Filter, flow control, IPv6 support, auto-negotiation, ACL support, CoS, port mirroring, full duplex mode, half duplex mode

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p

Processor

1 x ARM: 2 GHz

Status Indicators

Port status, power

Interfaces

12 x 10/100/1000 Base-T RJ-45 4 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+

Power Device

Internal power supply

Voltage Required

AC 100-240 V (50/60 Hz)

MTBF

88.8 years

Compliant Standards

IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 62368-1, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, IEC/EN 60825-1:2014 Class 2, EN 55032:2015 Class A, CISPR 32:2015 Class A, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN32 Class A, AS/NZS CISPR 32 Class A, EN 55035, CISPR 35, KN35, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3

Pricing Type

BTO

Width

44.25 cm

Depth

35.05 cm

Height

4.395 cm

Weight

4.3 kg

Service & Support

Limited warranty - lifetime

Min Operating Temperature

Max Operating Temperature

Humidity Range Operating

Min Storage Temperature

Max Storage Temperature
