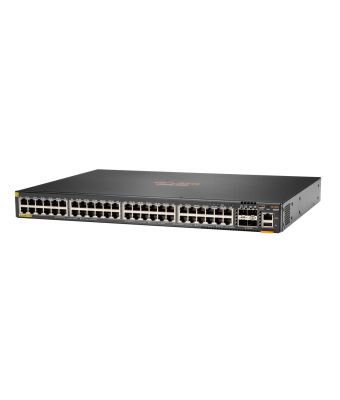

Aruba 6200F 48G Class4 PoE 4SFP+ 370W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
|
In Stock
€3177.39 (Ex. VAT)
€3781.09 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Multicast support
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L3
Network
IGMP snooping
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Performance
Packet buffer memory
8 MB
Stackable
Yes
Physical stacking (units)
8
Processor frequency
1800 MHz
Memory type
SDRAM / Flash
Internal memory
8192 MB
Flash memory
16384 MB
Built-in processor
Yes
Processor model
ARM Cortex-A72
Technical details
Physical stacking (units)
8
Form factor
1U
Stackable
Yes
Processor frequency
1800 MHz
Rack mounting
Yes
Built-in processor
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45/USB Type-C
Optical fiber
Transmission distance (max)
10 km
Data transmission
Throughput
130.9 Mpps
Latency (1 Gbps)
2.28 µs
Latency (10 Gbps)
1.46 µs
Packet buffer memory
8 MB
MAC address table
32768 entries
Switching capacity
176 Gbit/s
Security
Authentication
MAC-based authentication, Web-based authentication
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
RADIUS, TACACS+
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
8 MB
Memory type
SDRAM / Flash
Internal memory
8192 MB
Flash memory
16384 MB
Design
Form factor
1U
Stackable
Yes
Rack mounting
Yes
Power
Power consumption (max)
76 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Redundant power supply (RPS) support
No
Power source
AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
442 mm
Depth
327 mm
Height
43.9 mm
Weight
5.1 kg
Aruba 6200F 48G Class4 PoE 4SFP+ 370W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
| Length | 44.2 cm |
| Width | 32.7 cm |
| Height | 4.39 cm |
| Weight | 5.100000 kgs |
