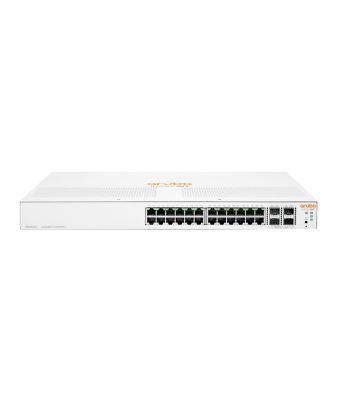

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
|
In Stock
€278.70
€331.65 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L3/L4
Cloud-managed
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Network
Auto-sensing
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Qaz, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
IGMP snooping
Yes
Data transmission
Jumbo frames
9216
Throughput
95.23 Mpps
Latency (10-100 Mbps)
4.7 µs
Latency (1 Gbps)
2.4 µs
Latency (10 Gbps)
1.3 µs
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Jumbo frames support
Yes
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client
Design
Form factor
1U
Product colour
White
Stackable
No
Rack mounting
Yes
Performance
Processor frequency
800 MHz
Memory type
SDRAM / Flash
Internal memory
512 MB
Flash memory
256 MB
Built-in processor
Yes
Processor model
ARM Cortex-A9
Packet buffer memory
1.5 MB
Stackable
No
Power
Power consumption (max)
280 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
195 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
15 - 95%
Operating altitude
0 - 3048 m
Virtual LAN features
VLAN support
Yes
Weight & dimensions
Width
442.5 mm
Depth
264.7 mm
Height
43.9 mm
Weight
3.49 kg
Technical details
Form factor
1U
Product colour
White
Stackable
No
Processor frequency
800 MHz
Rack mounting
Yes
Built-in processor
Yes
Memory
Packet buffer memory
1.5 MB
Memory type
SDRAM / Flash
Internal memory
512 MB
Flash memory
256 MB
Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
| Length | 26.47 cm |
| Width | 44.25 cm |
| Height | 4.39 cm |
| Weight | 3.490000 kgs |
