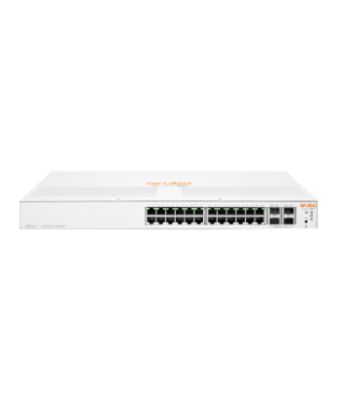

Aruba Instant On 1930 24G 4SFP/SFP+ Switch
|
In Stock
€193.56 (Ex. VAT)
€230.34 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2+
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Network
Auto-sensing
Yes
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
256
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
IGMP snooping
Yes
Data transmission
Throughput
95.23 Mpps
Latency (10-100 Mbps)
4.7 µs
Latency (1 Gbps)
2.4 µs
Latency (10 Gbps)
1.3 µs
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Jumbo frames support
Yes
Number of VLANs
256
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Design
Form factor
1U
Product colour
White
Stackable
No
Rack mounting
Yes
Performance
Processor frequency
800 MHz
Memory type
SDRAM
Internal memory
512 MB
Flash memory
256 MB
Processor model
ARM Cortex-A9
Packet buffer memory
1.5 MB
Stackable
No
Harmonized System (HS) code
85176990
Power
Power consumption (max)
22.6 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
15 - 95%
Virtual LAN features
VLAN support
Yes
Number of VLANs
256
Weight & dimensions
Width
442.5 mm
Depth
221.5 mm
Height
43.9 mm
Weight
2.41 kg
Technical details
Form factor
1U
Product colour
White
Stackable
No
Processor frequency
800 MHz
Rack mounting
Yes
Memory
Packet buffer memory
1.5 MB
Memory type
SDRAM
Internal memory
512 MB
Flash memory
256 MB
Logistics data
Harmonized System (HS) code
85176990
Aruba Instant On 1930 24G 4SFP/SFP+ Switch
| Length | 22.15 cm |
| Width | 44.25 cm |
| Height | 4.39 cm |
| Weight | 2.410000 kgs |
