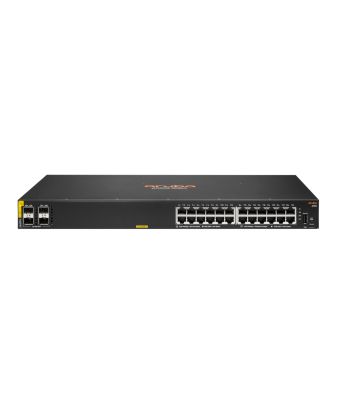

Aruba 6100 24G Class4 PoE 4SFP+ 370W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
|
In Stock
€1131.06
€1345.96 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Multicast support
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L3
Network
IGMP snooping
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Performance
Packet buffer memory
12.38 MB
Stackable
Yes
Virtual stacking (units)
16
Processor frequency
1016 MHz
Memory type
DDR3-SDRAM
Internal memory
4096 MB
Flash memory
16 MB
Built-in processor
Yes
Processor model
ARM Cortex-A9
Technical details
Virtual stacking (units)
16
Form factor
1U
Product colour
Black
Stackable
Yes
Processor frequency
1016 MHz
Rack mounting
Yes
Built-in processor
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
USB
Data transmission
Throughput
95.2 Mpps
Latency (1 Gbps)
1.5 µs
Latency (10 Gbps)
1.8 µs
Packet buffer memory
12.38 MB
MAC address table
8192 entries
Switching capacity
128 Gbit/s
Jumbo frames support
Yes
Security
Authentication
MAC-based authentication
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
RADIUS, TACACS+
DHCP features
DHCP client
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
12.38 MB
Memory type
DDR3-SDRAM
Internal memory
4096 MB
Flash memory
16 MB
Design
Form factor
1U
Product colour
Black
Stackable
Yes
Rack mounting
Yes
Airflow direction
Side-to-side airflow
Power
Power consumption (max)
32.7 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 90%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
15 - 95%
Weight & dimensions
Width
442 mm
Depth
268 mm
Height
44 mm
Weight
4.2 kg
Aruba 6100 24G Class4 PoE 4SFP+ 370W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
| Length | 26.80 cm |
| Width | 44.20 cm |
| Height | 4.40 cm |
| Weight | 4.200000 kgs |
