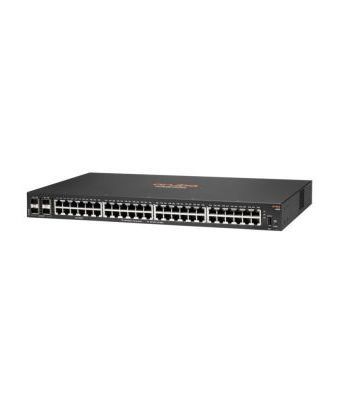

HPE Aruba JL676A 6100 48G 4SFP+ Managed L3 Gigabit Ethernet

Device Type

Switch - 52 ports - Managed

Enclosure Type

Side to side airflow rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+

Performance

Capacity

Switched virtual interfaces (SVIs): 16 ARP entries: 1024 IPv4 routes (Unicast): 512 IPv6 routes (Unicast): 512 IGMP groups: 512 MLD groups: 512 IPv4 ACL entries (ingress): 256 IPv6 ACL entries (ingress): 128 MAC ACL entries (ingress): 256

MAC Address Table Size

8192 entries

Routing Protocol

IGMPv2, IGMPv3

Encryption Algorithm

SSL

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, MSTP support, TFTP support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, MIB, NAC, NDP, SNMP support, ICMP, EntityMIB, DNS client, LLDP-MED, UDP, RSTP, IPv6 addressing

Compliant Standards

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az

Processor

1 x ARM A9: 1.016 GHz

RAM

4 GB DDR3 SDRAM

Flash Memory

16 GB

Interfaces

48 x 10/100/1000 Base-T RJ-45 4 x 1/10Gbit LAN SFP+ 1 x USB-C console 1 x USB Type A

Power Device

Internal power supply

Power Provided

65 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

20.6 Watt

Compliant Standards

FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792

Width

44.2 cm

Depth

24.74 cm

Height

4.39 cm

Weight

3.42 kg

Service & Support

Limited warranty - lifetime

Min Operating Temperature

Max Operating Temperature

Humidity Range Operating

15 - 95% (non-condensing)

Humidity Range Storage

15 - 90% (non-condensing)
