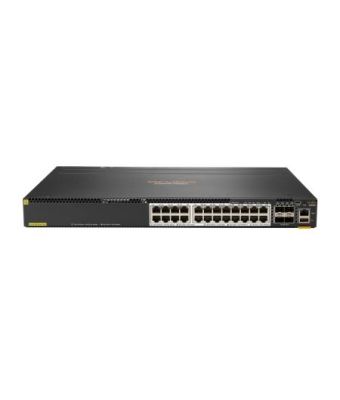

Aruba 6300M Managed L3 Power over Ethernet (PoE) 1U Grey

Device Type

Switch - 24 ports - L3 - Managed - stackable

Enclosure Type

Front and side to back rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 1/2.5/5/10GBase-T + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)

Power Over Ethernet (PoE)

PoE+

PoE Budget

1440 W

Performance

Capacity

Switched virtual interfaces (SVIs): 1000 IPv4 host table capacity: 32000 IPv6 host table capacity: 32000 IPv4 routes (Unicast): 64000 IPv6 routes (Unicast): 32000 IPv4 routes (Multicast): 8000 IPv6 routes (Multicast): 8000 IGMP groups: 8000 MLD groups: 4000 IPv4 ACL entries (ingress): 5000 IPv6 ACL entries (ingress): 1250 MAC ACL entries (ingress): 5000 IPv4 ACL entries (egress): 2000 IPv6 ACL entries (egress): 500 MAC ACL entries (egress): 2000

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD)

Remote Management Protocol

RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP

Authentication Method

RADIUS, TACACS+

Features

DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB

Compliant Standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt

Processor

1 x ARM Cortex-A72: 1.78 GHz

RAM

8 GB DDR4 SDRAM

Flash Memory

32 GB

Interfaces

24 x 1/2.5/5/10GBase-T RJ-45 PoE+ - 60 W 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 1 x USB-C console 1 x management 1 x USB Type A

Rack Mounting Kit

Included

Compliant Standards

FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 50581:2012, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2nd Edition), CISPR 35, EN 55024:2010 Class A, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Width

44.2 cm

Depth

38.5 cm

Height

4.4 cm

Weight

6.06 kg

Service & Support

Limited warranty - lifetime

Min Operating Temperature

Max Operating Temperature

Humidity Range Operating

15 - 95% (non-condensing)

Min Storage Temperature

Max Storage Temperature

Humidity Range Storage

15 - 95% (non-condensing)
