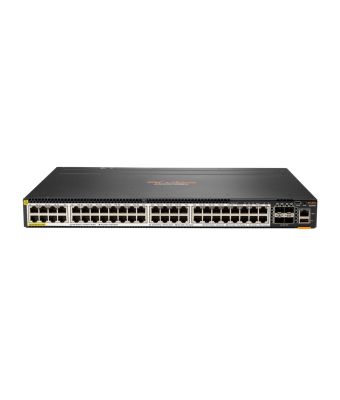

ARUBA CX 6300M 48-PORT HPE SMART RATE 1/2.5/5GBE CLASS 6 POE AND 4-PORT SFP56 SWITCH (JL659A)
|
In Stock
€12556.12
€14941.78 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L3
Ports & interfaces
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Network
Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
IGMP snooping
Yes
Optical fiber
Transmission distance (max)
10 km
Data transmission
Throughput
654 Mpps
Latency (1 Gbps)
Latency (10 Gbps)
Packet buffer memory
8 MB
MAC address table
29490 entries
Switching capacity
880 Gbit/s
Jumbo frames support
Yes
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server
Protocols
Routing protocols
BGP, BGP4, IP, OSPF
Design
Form factor
1U
Product colour
Grey
Stackable
Yes
Rack mounting
Yes
Performance
Physical stacking (units)
10
Processor frequency
1800 MHz
Memory type
DDR4-SDRAM
Internal memory
8192 MB
Flash memory
32 MB
Built-in processor
Yes
Processor model
ARM Cortex-A72
Packet buffer memory
8 MB
Stackable
Yes
Harmonized System (HS) code
85176990
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
2880 W
Power over Ethernet (PoE)
Yes
Virtual LAN features
VLAN support
Yes
Weight & dimensions
Width
442 mm
Depth
385 mm
Height
44 mm
Weight
6.02 kg
Technical details
Physical stacking (units)
10
Form factor
1U
Product colour
Grey
Stackable
Yes
Processor frequency
1800 MHz
Rack mounting
Yes
Built-in processor
Yes
Memory
Packet buffer memory
8 MB
Memory type
DDR4-SDRAM
Internal memory
8192 MB
Flash memory
32 MB
Logistics data
Harmonized System (HS) code
85176990
ARUBA CX 6300M 48-PORT HPE SMART RATE 1/2.5/5GBE CLASS 6 POE AND 4-PORT SFP56 SWITCH (JL659A)
| Weight | 0.000000 kgs |
