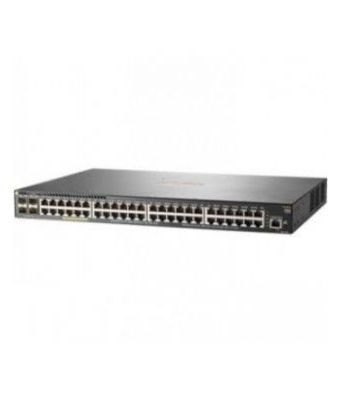

Aruba JL262A 2930F 48G PoE+ 4SFP Managed L3 Gigabit Ethernet
|
In Stock
€1499.20
€1784.05 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Design
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Grey
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Traffic classification
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
370 W
Data transmission
MAC address table
32768 entries
Switching capacity
104 Gbit/s
Throughput
77.4 Mpps
Latency (1 Gbps)
Jumbo frames support
Yes
Packet buffer memory
12.38 MB
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Yes
IP routing
Yes
Routing entries
10000
Flow control support
Yes
Link aggregation
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Auto-sensing
Yes
VLAN support
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
48.6 W
Power consumption (max)
459 W
Multicast features
Multicast support
Yes
Performance
Built-in processor
Yes
Processor model
ARM Cortex-A9
Processor frequency
1016 MHz
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Security
DHCP features
DHCP server
Access Control List (ACL)
Yes
IGMP snooping
Yes
SSH/SSL support
Yes
Operational conditions
Operating temperature (T-T)
Storage temperature (T-T)
Operating relative humidity (H-H)
15 - 95 %
Heat dissipation
1566 BTU/h
Weight & dimensions
Width
442.5 mm
Depth
304.2 mm
Height
43.9 mm
Weight
4.46 kg
Protocols
Routing protocols
IP
IPv4 FIB entries
10000
IPv6 FIB entries
5000
Logistics data
Harmonized System (HS) code
85176990
Aruba JL262A 2930F 48G PoE+ 4SFP Managed L3 Gigabit Ethernet
| Length | 30.42 cm |
| Width | 44.25 cm |
| Height | 4.39 cm |
| Weight | 4.460000 kgs |
