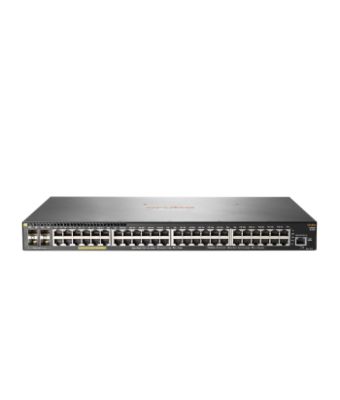

Aruba 2930F 48G PoE+ 4SFP+ - Switch - L3 - managed - 48 x 10/100/1000 (PoE+)
|
In Stock
Call us for price confirmation
+49 7251 941 3000
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Multicast support
Yes
Traffic classification
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
4
Console port
RJ-45
Network
IGMP snooping
Yes
Auto-sensing
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Routing entries
10000
Rate limiting
Yes
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Performance
Stackable
Yes
Processor frequency
1016 MHz
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Built-in processor
Yes
Processor model
ARM Cortex-A9
Technical details
Form factor
1U
Product colour
Grey
Stackable
Yes
Processor frequency
1016 MHz
Rack mounting
Yes
Built-in processor
Yes
Data transmission
Throughput
112 Mpps
Latency (1 Gbps)
3.8 µs
Latency (10 Gbps)
1.6 µs
MAC address table
32768 entries
Switching capacity
176 Gbit/s
Jumbo frames support
Yes
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server
Multicast features
Multicast support
Yes
Memory
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Design
Form factor
1U
Product colour
Grey
Stackable
Yes
Rack mounting
Yes
Power
Power consumption (max)
459 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
48.6 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
15 - 95%
Heat dissipation
1566 BTU/h
Weight & dimensions
Width
442.5 mm
Depth
304.2 mm
Height
43.9 mm
Weight
4.46 kg
Aruba 2930F 48G PoE+ 4SFP+ - Switch - L3 - managed - 48 x 10/100/1000 (PoE+)
| Length | 30.42 cm |
| Width | 44.25 cm |
| Height | 4.39 cm |
| Weight | 4.460000 kgs |
