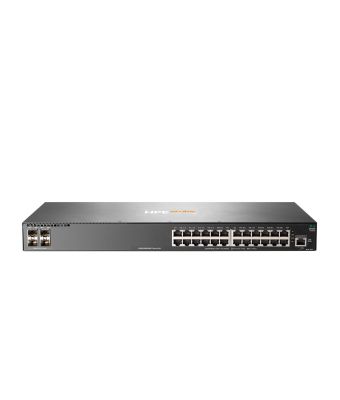

HPE Aruba JL253A New
|
In Stock €983.62
€1170.51 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Private VLAN
Performance
Packet buffer memory
12.38 MB
Stackable
Yes
Virtual stacking (units)
8
Processor frequency
1016 MHz
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Flash memory
4096 MB
Built-in processor
Yes
Processor model
ARM Cortex-A9
Technical details
Virtual stacking (units)
8
Form factor
1U
Stackable
Yes
Processor frequency
1016 MHz
Rack mounting
Yes
Built-in processor
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Console port
RJ-45/micro-USB
Network
Auto-sensing
Yes
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Half duplex
Yes
Virtual LAN features
Private VLAN
Data transmission
Throughput
95.2 Mpps
Latency (1 Gbps)
3.8 µs
Latency (10 Gbps)
1.6 µs
Packet buffer memory
12.38 MB
MAC address table
32768 entries
Switching capacity
128 Gbit/s
Security
SSH/SSL support
Yes
Access Control List (ACL)
Yes
Authentication type
RADIUS- TACACS+
Multicast features
Multicast support
Yes
Protocols
Routing protocols
RIPng- VRRP
Memory
Packet buffer memory
12.38 MB
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Flash memory
4096 MB
Design
Form factor
1U
Stackable
Yes
Rack mounting
Yes
Power
Power consumption (max)
29.3 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
15 - 95%
Heat dissipation
100 BTU/h
Weight & dimensions
Width
442.5 mm
Depth
200.2 mm
Height
43.9 mm
Weight
2.41 kg
HPE Aruba JL253A New
| Length | 20.02 cm |
| Width | 44.25 cm |
| Height | 4.39 cm |
| Weight | 2.410000 kgs |
