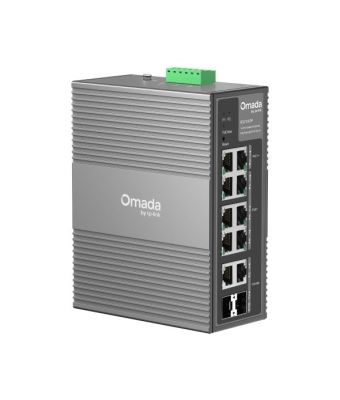

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++
|
In Stock
€169.42 (Ex. VAT)
€201.61 (Inc. VAT)
All items are duty-free in the EU. Business clients having EU-VAT number do not Pay VAT
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Network
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
VLAN support
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
IGMP snooping
Yes
Data transmission
Jumbo frames
15000
Packet buffer memory
4000 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
14.88 Mpps
Number of VLANs
4000
Security
Loop protection
Yes
IGMP snooping
Yes
DHCP features
DHCP client
Multicast features
Multicast support
Yes
Design
Form factor
DIN rail
Product colour
Grey
LED indicators
Yes
Rack mounting
Yes
Power
DC input voltage
12 - 57 V
Power source
DC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
6
Total Power over Ethernet (PoE) budget
240 W
Power over Ethernet (PoE)
Yes
Power over Ethernet 4PPoE (PoE++) ports quantity
2
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Weight & dimensions
Width
155 mm
Depth
120 mm
Height
60 mm
Performance
Packet buffer memory
4000 MB
Auto-negotiation
Yes
Technical details
Form factor
DIN rail
Product colour
Grey
Rack mounting
Yes
Memory
Packet buffer memory
4000 MB
Indication
LED indicators
Yes
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++
| Length | 15.5 cm |
| Width | 12 cm |
| Height | 6 cm |
| Weight | 1.000000 kgs |
