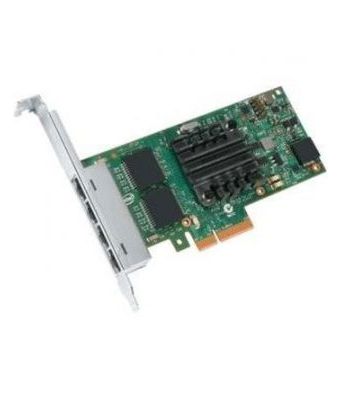

Intel I350T4V2 networking card Internal Ethernet 1000 Mbit/s

Internal

Yes

PCI version

2.1

Ethernet LAN (RJ-45) ports

4

PCI Card form factor

Half-height (low-profile)

Interface

Ethernet

Host interface

PCI Express

Connectivity technology

Wired

Full duplex

Yes

Maximum data transfer rate

1000 Mbit/s

Chipset

Intel® I350

Ethernet LAN

Yes

Cabling technology

10/100/1000BaseT(X)

Networking standards

IEEE 802.1as-IEEE 802.1Q-IEEE 802.3-IEEE 802.3ab-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z

Supported network protocols

TCP- UDP- IP

Maximum operating distance

100 m

LAN controller

Intel® I350

Full duplex

Yes

Ethernet LAN data rates

10-100-1000 Mbit/s

Copper ethernet cabling technology

1000BASE-T-100BASE-TX-10BASE-T

Maximum data transfer rate

1000 Mbit/s

Interface type

PCIe v2.1 (5.0 GT/s)

Product colour

Green- Silver

Thermal power

5 W

Storage-over-ethernet

Yes

Speed & slot width

5.0 GT/s- x4 Lane

PCI-SIG* SR-IOV Capable

Yes

PCI Card form factor

Half-height (low-profile)

On-chip QoS and Traffic Management

Yes

Message signal interrupt

No

Low halogen options available

No

iWARP/RDMA

No

Intelligent Offloads

Yes

Intel Virtualization Technology for Connectivity (VT-c)

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Trusted Execution Technology

No

Intel Flexible Port Partitioning

Yes

Intel Ethernet Power Management

Yes

Intel Data Direct I/O Technology

No

Fiber Channel over Ethernet

No

Embedded options available

No

Storage Over Ethernet

iSCSI- NFS

Harmonized System (HS) code

8517620090

Export Control Classification Number (ECCN)

5A991

Commodity Classification Automated Tracking System (CCATS)

NA

Thermal Design Power (TDP)

5 W

Product type

Network Interface Card

Number of QPI links

Quad

Processor family

Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)

Status

Launched

Product name

Intel Ethernet Server Adapter I350-T4V2

Product brief URL

http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350

Network interface card type

Server

Network interface card cable medium

Copper

Market segment

Server

Launch date

Q3'14

Born on date

Q3'14

Last change

63903513

Product colour

Green- Silver

Chipset

Intel® I350

Internal

Yes

PCI Card form factor

Half-height (low-profile)

LED indicators

LAN

Component for

Server

Product family

Intel Gigabit server adapter

Product series

Intel® I350

Product codename

Powerville

Linux operating systems supported

RedHat EL Linux 5.0-RedHat EL Linux 6.0-SuSE Linux 10-SuSE Linux 11

Power consumption (typical)

5 W

LED indicators

LAN

Server operating systems supported

Windows Server 2003 R2-Windows Server 2008 R2

Linux operating systems supported

RedHat EL Linux 5.0-RedHat EL Linux 6.0-SuSE Linux 10-SuSE Linux 11

Compatible operating systems

https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

35 - 90%

Width

68.9 mm

Depth

135.4 mm

Height

120 mm

Supported network protocols

TCP- UDP- IP

Server operating systems supported

Windows Server 2003 R2-Windows Server 2008 R2

Ethernet adapter ARK ID

84805

Linux operating systems supported

RedHat EL Linux 5.0-RedHat EL Linux 6.0-SuSE Linux 10-SuSE Linux 11

Thermal power

5 W

Storage-over-ethernet

Yes

Speed & slot width

5.0 GT/s- x4 Lane

PCI-SIG* SR-IOV Capable

Yes

On-chip QoS and Traffic Management

Yes

iWARP/RDMA

No

Intelligent Offloads

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Flexible Port Partitioning

Yes

Intel Ethernet Power Management

Yes

Intel Data Direct I/O Technology

No

Fiber Channel over Ethernet

No

Chipset

Intel® I350

Compatible operating systems

https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Thermal Design Power (TDP)

5 W

Product type

Network Interface Card

Number of QPI links

Quad

Processor family

Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)

Ethernet adapter ARK ID

84805

Interface type

PCIe v2.1 (5.0 GT/s)

Cable type

Cat 5 up to 100m

Thermal power

5 W

Storage-over-ethernet

Yes

Speed & slot width

5.0 GT/s- x4 Lane

PCI-SIG* SR-IOV Capable

Yes

On-chip QoS and Traffic Management

Yes

Message signal interrupt

No

Low halogen options available

No

iWARP/RDMA

No

Intelligent Offloads

Yes

Intel Virtualization Technology for Connectivity (VT-c)

Yes

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel Trusted Execution Technology

No

Intel Flexible Port Partitioning

Yes

Intel Ethernet Power Management

Yes

Intel Data Direct I/O Technology

No

Fiber Channel over Ethernet

No

Embedded options available

No

Storage Over Ethernet

iSCSI- NFS

Status

Launched

Product name

Intel Ethernet Server Adapter I350-T4V2

Product brief URL

http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350

Network interface card type

Server

Network interface card cable medium

Copper

Market segment

Server

Launch date

Q3'14

Born on date

Q3'14

Last change

63903513

Product family

Intel Gigabit server adapter

Product series

Intel® I350

Product codename

Powerville

Harmonized System (HS) code

8517620090

Export Control Classification Number (ECCN)

5A991

Commodity Classification Automated Tracking System (CCATS)

NA

Controller type

Intel I350

Cabling type

Cat 5 up to 100m

Bracket height

Low-Profile (LP) / Full-Height (FH)
